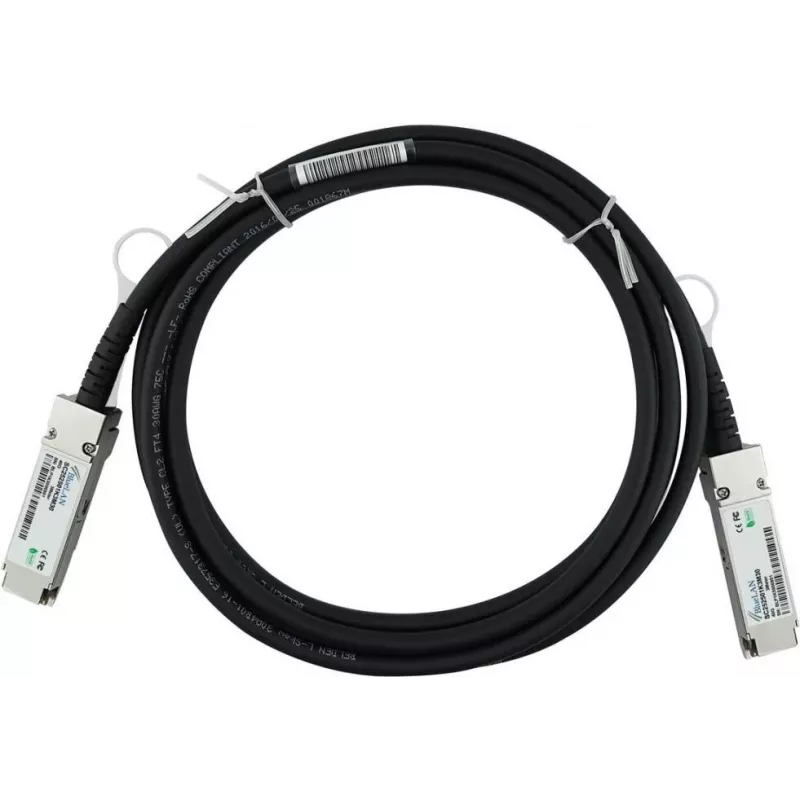

BlueLAN Lenovo A1DP Cable Direct Attach QSFP compatible, 40GBASE-CR4, 30AWG, 1 metro

This BlueLAN compatible direct attach copper (DAC) cable is designed for high-performance data center and enterprise networking environments. It provides a cost-effective, low-power solution for 40 Gigabit Ethernet (40GBASE-CR4) and InfiniBand QDR connections. With a length of 1 meter and 30 AWG wire gauge, it is ideal for short-range, high-speed interconnects between switches, servers, and storage devices.

Advantages

Passive design ensures zero power consumption and minimal heat generation. Hot-swappable QSFP connectors allow for easy installation and replacement without network downtime. The cable is fully compatible with Lenovo A1DP and other standard QSFP 40G ports, ensuring seamless integration.

Suitable for

• Data center top-of-rack and end-of-row cabling
• High-performance computing clusters
• Enterprise network backbone connections
• Storage area network (SAN) interconnects

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• InfiniBand Standard: QDR
• Cable Length: 1 Meter (3.3 feet)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with compatible 40G QSFP ports. Ensure proper handling to avoid damage to connectors. This passive DAC cable is recommended for short-distance links up to 1 meter.
