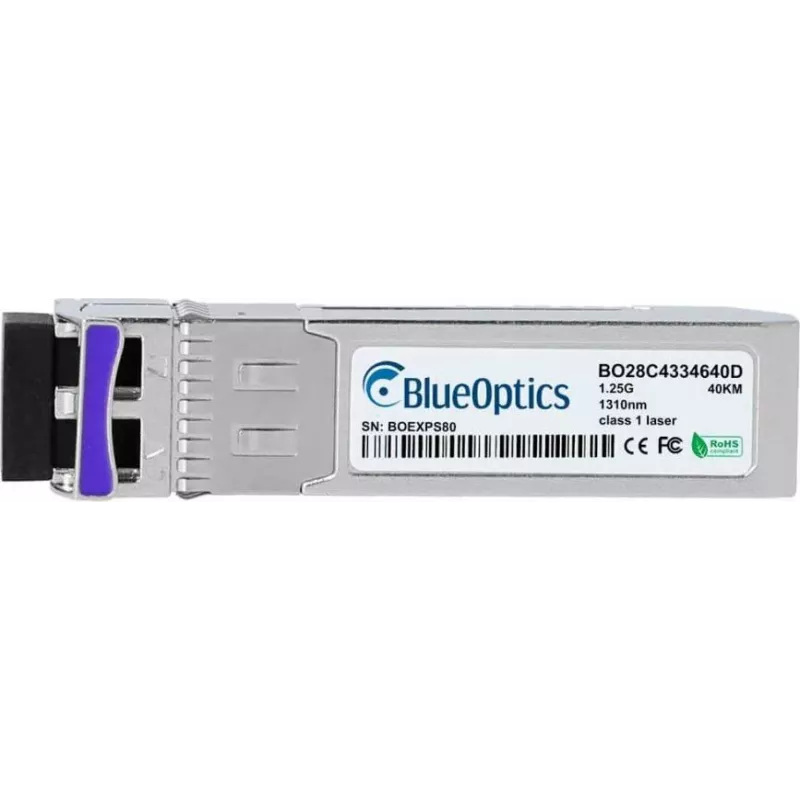

BlueOptics BO28C4334640DIN Transceptor cSFP Bidi 1000BASE-2BX-D 40km Industrial

The BlueOptics BO28C4334640DIN is a high-performance industrial-grade cSFP Bi-Directional (BiDi) transceiver designed for Gigabit Ethernet applications over singlemode fiber. It operates at a data rate of 1 Gbps and supports a transmission distance of up to 40 km. With a compact form factor and dual-channel capability, this transceiver is ideal for space-constrained networking environments requiring reliable long-distance connectivity.

Advantages

This transceiver offers exceptional reliability and performance in harsh conditions, with an extended operating temperature range of -40°C to +85°C. Its BiDi technology enables bidirectional communication over a single fiber strand, reducing fiber infrastructure costs. The integrated Digital Diagnostic Monitoring (DDM) provides real-time monitoring of key parameters for proactive network management.

Suitable for

• Industrial Ethernet networks
• Long-distance fiber optic links up to 40 km
• Gigabit Ethernet applications requiring BiDi transceivers
• Outdoor or temperature-extreme environments

Key specifications

• Form Factor: cSFP (Compact Small Form-Factor Pluggable)
• Number of Channels: 2
• Connector Type: LC-Duplex
• Data Rate: 1 Gbps
• Ethernet Standard: 1000BASE-BX (2BX-D)
• Fiber Type: Singlemode (SMF)
• Transmit Wavelength: 1490 nm
• Receive Wavelength: 1310 nm
• Max Distance: 40 km
• Operating Temperature: -40°C to +85°C
• DDM: Yes
• Hot-Pluggable: Yes
• MSA Compliant: Yes
• Power Supply: 3.3V

Recommendations

For optimal performance, pair this transceiver with a compatible cSFP port and singlemode fiber patch cables. Ensure proper handling and installation to maintain industrial temperature ratings.
