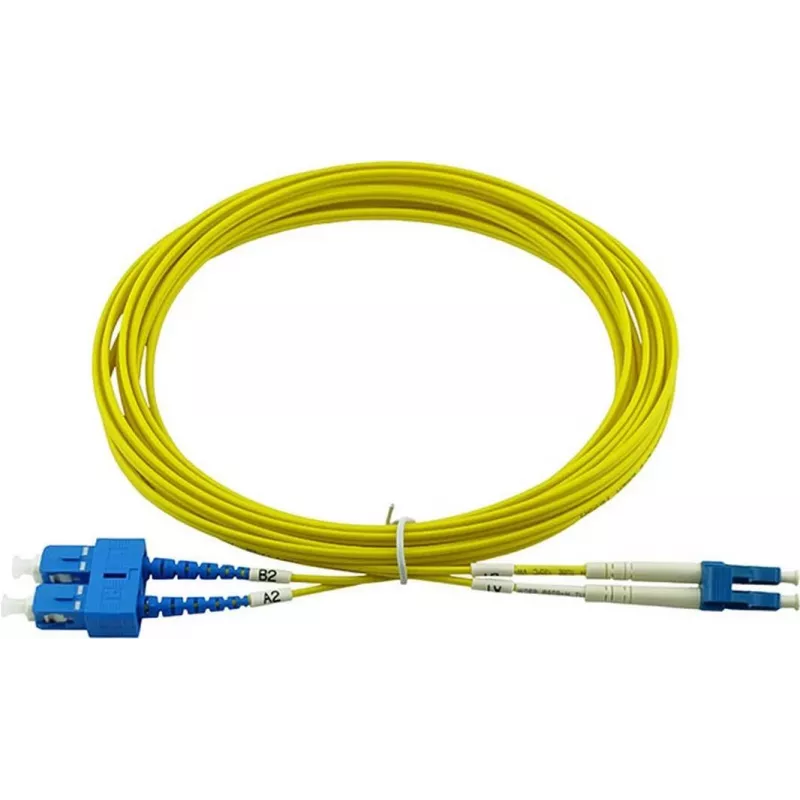

BlueOptics Cable de conexión de fibra óptica dúplex LC-UPC/SC-UPC Monomodo 15 metros

High-performance BlueOptics duplex fibre optic patch cable designed for reliable singlemode transmission. Ideal for data centres, LAN, SAN, FTTx, and telecommunications networks.

Advantages

Low insertion loss and high return loss ensure excellent signal integrity. LSZH jacket provides safety in confined spaces. Durable construction with ceramic ferrule for long-term reliability.

Suitable for

• Data centre cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• FTTx deployments
• Telecommunications infrastructure

Key specifications

• Connector A: LC-UPC
• Connector B: SC-UPC
• Fibre type: Singlemode OS2
• Core/Cladding: 9/125 µm
• Cable length: 15 metres
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 3.0 mm
• Number of fibres: 2 (duplex)
• Insertion loss: <0.3 dB typical
• Return loss: >50 dB typical
• Polish: UPC
• Cable colour: Yellow
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with compatible SFP transceivers and ensure clean connections. This cable meets OS2 standards for singlemode applications.
