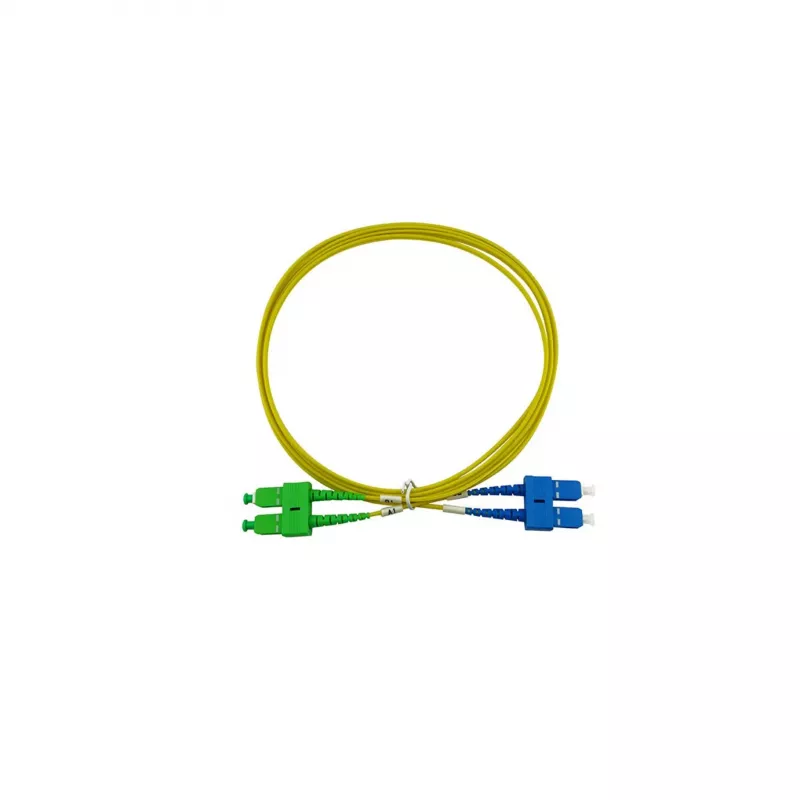

BlueOptics Cable de fibra óptica dúplex SC-UPC/SC-APC monomodo 5 metros

The BlueOptics Duplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 5 metres is a high-performance fibre optic patch cable designed for reliable and efficient data transmission in singlemode networks. This cable features a duplex design with two fibres, terminated with SC/UPC on one end and SC/APC on the other, ensuring low insertion loss and high return loss for optimal signal integrity. The 5-metre length provides flexibility in connecting network devices within racks or between patch panels.

Advantages

This patch cable offers several advantages for network professionals. The SC/UPC to SC/APC connector combination allows for easy identification and prevents mismatching in networks that require both polish types. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The yellow jacket colour is standard for singlemode cables, aiding in quick visual identification. With typical insertion loss below 0.3 dB and high return loss (≥50 dB for UPC, ≥60 dB for APC), this cable ensures excellent signal quality and minimal reflections.

Suitable for

• Data centres and server rooms requiring reliable singlemode fibre connections
• Telecommunications networks where SC/UPC and SC/APC interfaces are used
• FTTx (Fibre to the x) applications
• High-speed data transmission up to 10 Gbps and beyond
• Any environment where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Duplex
• Fiber Type: Singlemode (OS2)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 5 metres
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (SC/UPC): > 50 dB
• Return Loss (SC/APC): > 60 dB
• Fiber Count: 2
• Polish Type Connector A: UPC (Ultra Physical Contact)
• Polish Type Connector B: APC (Angled Physical Contact)
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 30 mm (Dynamic), 60 mm (Static)
• Standard Compliance: IEC 60793, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure that connectors are clean before mating. Use appropriate patch panels and avoid sharp bends to maintain signal integrity. This cable is ideal for use with BlueOptics transceivers and other singlemode equipment.
