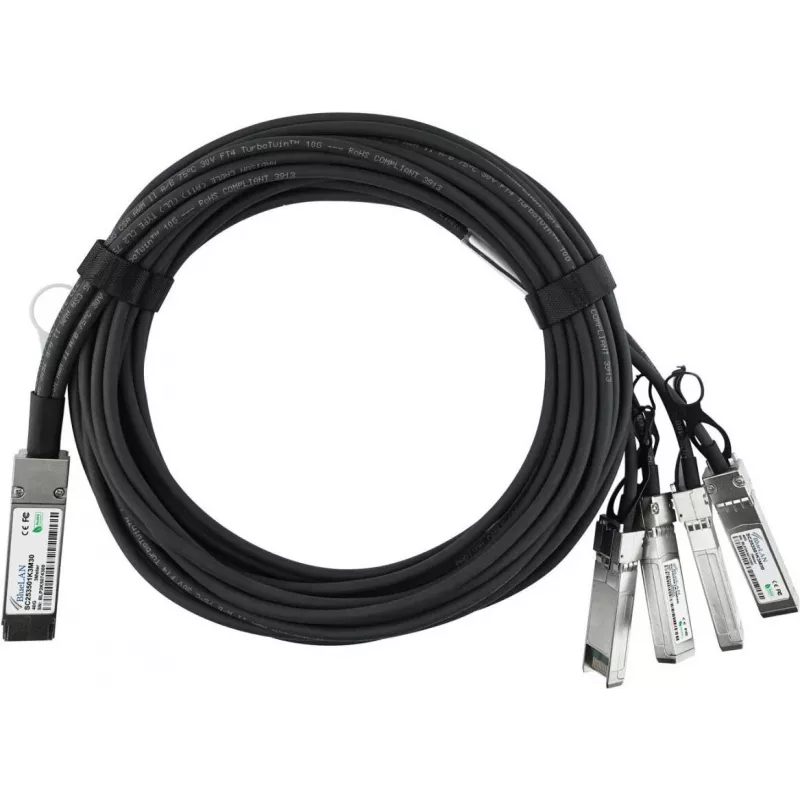

BlueOptics Dell 470-AAFD BlueLAN Cable Breakout Direct Attach Pasivo 40GBASE-CR4 QSFP a 4x10GBASE-CR SFP+, 5 m

The BlueOptics Dell 470-AAFD BlueLAN passive 40GBASE-CR4 QSFP to 4x10GBASE-CR SFP+ Direct Attach Breakout Cable is a high-performance, cost-effective solution for data center and enterprise networking. This 5-meter passive copper breakout cable enables seamless connectivity between a 40 Gbps QSFP port and four 10 Gbps SFP+ ports, providing flexible bandwidth aggregation and reducing cable clutter.

Advantages

This breakout cable offers significant advantages over traditional fiber optic solutions. It consumes less than 0.5W of power, eliminating the need for external power sources. The passive copper design ensures low latency and high reliability, while the 24 AWG construction guarantees optimal signal integrity over the 5-meter length. Hot-pluggable and compliant with RoHS, CE, and FCC standards, it is an environmentally friendly and safe choice.

Suitable for

• Data center interconnects requiring high-density 40G to 10G migration
• High-performance computing (HPC) clusters
• Enterprise networking and server rack aggregation
• Ethernet and InfiniBand QDR/FDR applications

Key specifications

• Cable Type: Direct Attach Cable (DAC) Breakout
• Connector A: QSFP (40GBASE-CR4)
• Connector B: 4x SFP+ (10GBASE-CR)
• Data Rate: 40 Gbps (port A) to 4x 10 Gbps (port B)
• Cable Length: 5 meters
• AWG: 24
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both the QSFP and SFP+ ports are compatible with passive DAC cables. This cable is designed for Dell 470-AAFD compatible systems but works with any standard QSFP and SFP+ interface. Always handle with care to avoid damage to connectors.
