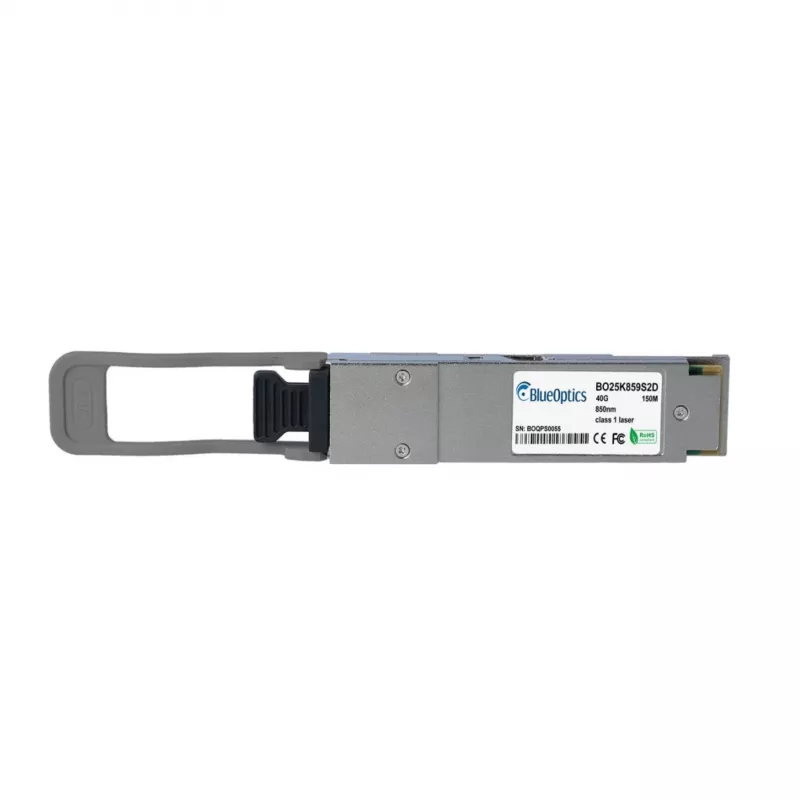

BlueOptics E40G-QSFP-SR-BIDI Transceptor QSFP compatible 40GBASE-SR-BIDI 150m LC Dúplex OM4 MMF

The BlueOptics E40G-QSFP-SR-BIDI is a high-performance 40 Gigabit Ethernet QSFP transceiver designed for use in data centers and enterprise networks. It is fully compatible with Ruckus E40G-QSFP-SR-BIDI and other MSA-compliant switches and routers. This Bi-Directional transceiver utilizes two wavelengths over a single LC duplex multimode fiber, effectively doubling the capacity of existing fiber infrastructure.

Advantages

Cost-effective solution for 40GbE connectivity, leveraging existing OM4 multimode fiber. Bi-directional technology reduces fiber usage by half. Hot-pluggable QSFP form factor allows for easy installation and maintenance. Low power consumption under 1.5W helps reduce operational costs. Digital Diagnostic Monitoring (DDM) provides real-time performance monitoring.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Cloud and virtualized environments

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps (40GBASE-SR-BIDI)
• Maximum Distance: 150 m over OM4 multimode fiber
• Connector: LC duplex
• Wavelengths: 850nm / 900nm (Bi-Directional)
• Fiber Type: Multimode (MMF)
• Transmitter: VCSEL
• Receiver: PIN photodiode
• Power Consumption: < 1.5W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Compliance: RoHS, CE, FCC, MSA

Recommendations

For optimal performance, use with OM4 multimode fiber patch cables and ensure proper cleaning of fiber connectors. This transceiver is ideal for upgrading existing 10GbE links to 40GbE without replacing fiber infrastructure.
