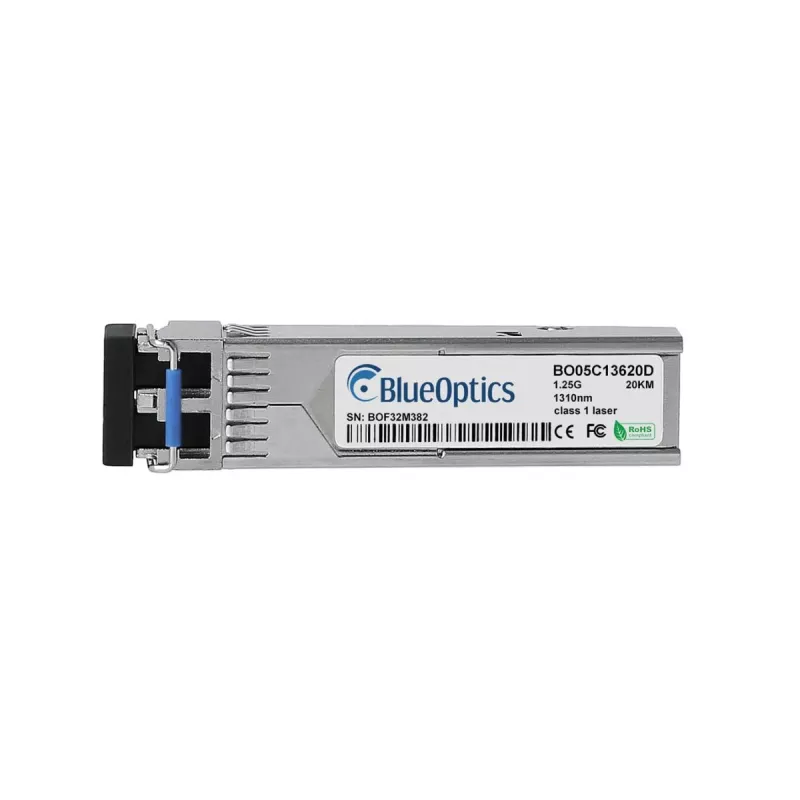

BlueOptics Hikvision HK-SFP-1.25G-20-1310 Transceptor SFP, 1000BASE-LX, Fibra Monomodo, 1310nm, 20km

The BlueOptics Hikvision HK-SFP-1.25G-20-1310 is a high-performance SFP transceiver designed for Gigabit Ethernet applications over singlemode fiber. It provides reliable connectivity at distances up to 20 km, making it ideal for enterprise networks, data centers, and telecommunications.

Advantages

This transceiver offers hot-pluggable capability, low power consumption (<1W), and full digital diagnostic monitoring (DDM) for real-time performance tracking. It is MSA compliant and RoHS certified, ensuring interoperability and environmental safety.

Suitable for

• Gigabit Ethernet networks requiring 1000BASE-LX connectivity
• Singlemode fiber optic links up to 20 km
• Hikvision compatible equipment
• Enterprise and carrier-grade applications

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-LX
• Fiber Type: Singlemode (OS2)
• Wavelength: 1310 nm
• Maximum Reach: 20 km
• Connector: LC Duplex
• DDM Support: Yes
• Hot-Pluggable: Yes
• Power Supply: 3.3 V
• Power Consumption: <1 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS1/OS2) and ensure proper cleaning of optical connectors. This transceiver is a direct replacement for Hikvision OEM modules.
