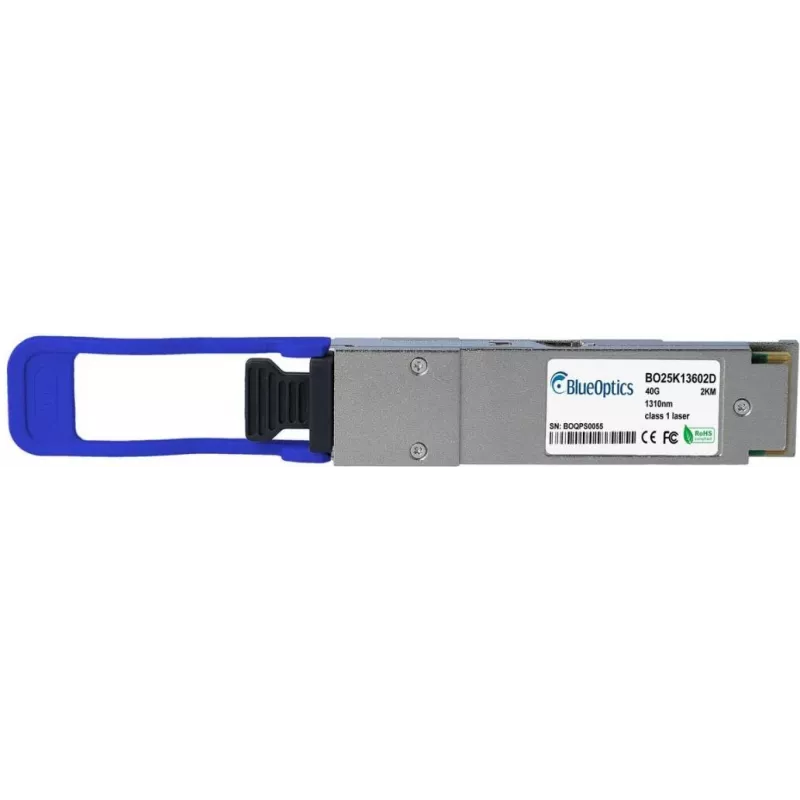

BlueOptics Huawei 02313URS BO25K13602D Transceptor QSFP, 40GBASE-LR4L, LC dúplex, fibra monomodo, 4xWDM, 2km, DDM/DOM, 0°C a +70°C

The BlueOptics BO25K13602D is a high-performance QSFP transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Huawei 02313URS equipment and offers reliable connectivity over singlemode fiber at distances up to 2 km. This transceiver supports 4-channel WDM technology and features Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking.

Advantages

Hot-pluggable QSFP form factor ensures easy installation and minimal network downtime. The 40GBASE-LR4L standard provides cost-effective 40G connectivity for enterprise and data center networks. With a wide operating temperature range of 0°C to +70°C, it is suitable for various environments.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Service provider aggregation
• High-speed storage networks

Key specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Standard: 40GBASE-LR4L
• Max Reach: 2 km
• Fiber Type: Singlemode (OS2)
• Connector: LC Duplex
• Wavelength: 4-channel WDM (1271nm, 1291nm, 1311nm, 1331nm)
• DDM/DOM: Supported
• Operating Temperature: 0°C to +70°C
• Compatibility: Huawei 02313URS

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is MSA compliant and works with any QSFP+ port.
