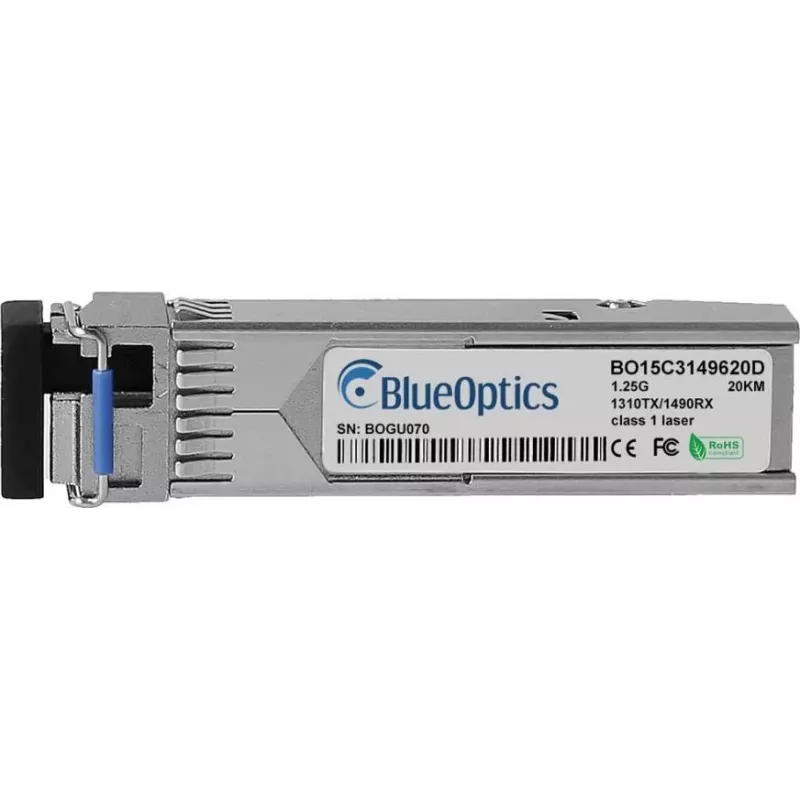

BlueOptics Lancom SFP-BiDi1310-LC10 Transceptor SFP, LC-Simplex, 1000BASE-BX-U, fibra monomodo, TX1310nm/RX1490nm, 10km

The BlueOptics SFP-BiDi1310-LC10-BO is a high-performance SFP transceiver designed for 1000BASE-BX-U Ethernet networks. It operates over singlemode fiber with a simplex LC connector, utilizing BiDi technology to transmit at 1310nm and receive at 1490nm, achieving distances up to 10km. This hot-pluggable module supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking, ensuring reliable and efficient network connectivity.

Advantages

BiDi technology reduces fiber infrastructure costs by using a single fiber strand for bidirectional communication. The 10km reach is ideal for metropolitan area networks (MAN) and campus backbones. DDM enables proactive network management and troubleshooting.

Suitable for

• Enterprise LANs and data centers
• Service provider access networks
• Point-to-point fiber links
• Lancom compatible systems

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-BX-U
• Connector: LC Simplex
• Fiber Type: Singlemode (SMF)
• Wavelength: TX 1310nm / RX 1490nm
• Max Distance: 10 km
• Hot-Pluggable: Yes
• DDM: Yes
• Power Supply: 3.3V
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, pair with matching BiDi transceivers at the opposite end (e.g., SFP-BiDi1490-LC10). Ensure your switch or media converter supports SFP modules and DDM if required.
