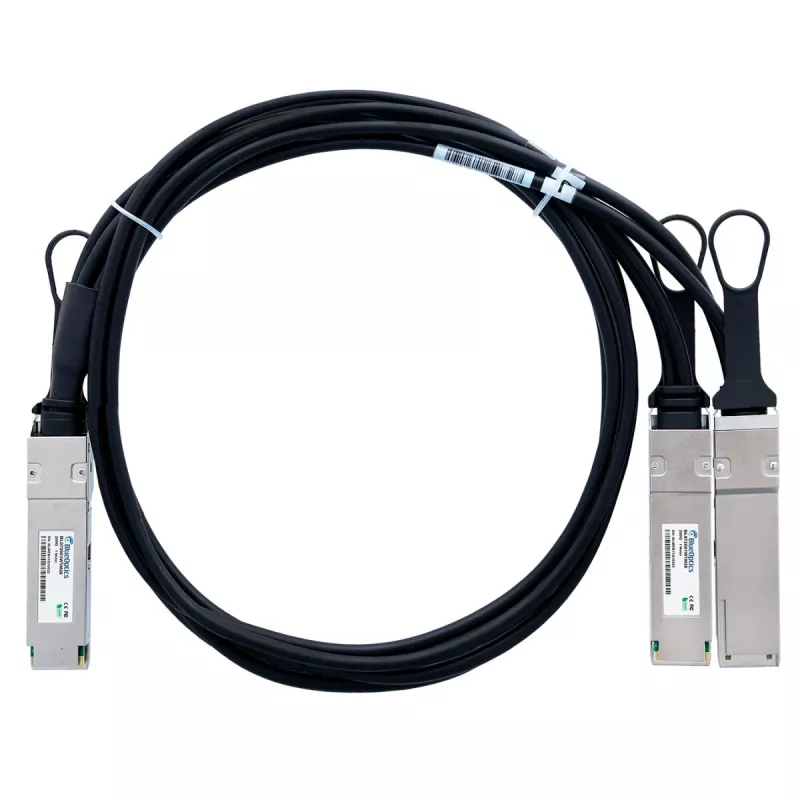

BlueOptics Lenovo 4Z57A11477 Compatible BlueLAN QSFP56 Breakout Direct Attach Cable (DAC) - Pasivo 200G a 2x100G Twinaxial Cobre, QSFP56 a 2xQSFP56, para conexiones de rack y racks adyacentes

The BlueOptics Lenovo 4Z57A11477 compatible BlueLAN QSFP56 Breakout Direct Attach Cable (DAC) is a high-performance passive twinaxial copper cable designed for 200 Gigabit Ethernet and InfiniBand applications. It breaks out a single QSFP56 port into two 100 Gbps QSFP56 ports, enabling efficient connectivity between switches, servers, and storage within racks or across adjacent racks. This cable is a cost-effective and reliable solution for data center interconnects, offering low latency and zero power consumption.

Advantages

Passive design ensures no power consumption and minimal heat generation. Breakout configuration maximizes port utilization and reduces cable clutter. Twinaxial copper construction provides excellent signal integrity over short distances. Hot-pluggable QSFP56 connectors allow for easy installation and maintenance. Compatible with Lenovo 4Z57A11477 and other standard QSFP56 interfaces.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing clusters
• Enterprise network aggregation
• Rack-to-rack connectivity within adjacent racks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Configuration: Breakout Cable (1 to 2)
• Cable Technology: Twinaxial Copper
• Active/Passive: Passive
• Aggregate Bandwidth: 200 Gbps
• Breakout Bandwidth: 2x 100 Gbps
• Connector A: QSFP56
• Connector B: 2x QSFP56
• Compatibility: Lenovo 4Z57A11477 (compatible)
• Hot-Pluggable: Yes
• Protocol Support: Ethernet, InfiniBand
• RoHS Compliance: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP56 ports. This cable is ideal for short-reach interconnects within a rack or between adjacent racks. For longer distances, consider active optical cables or transceivers.
