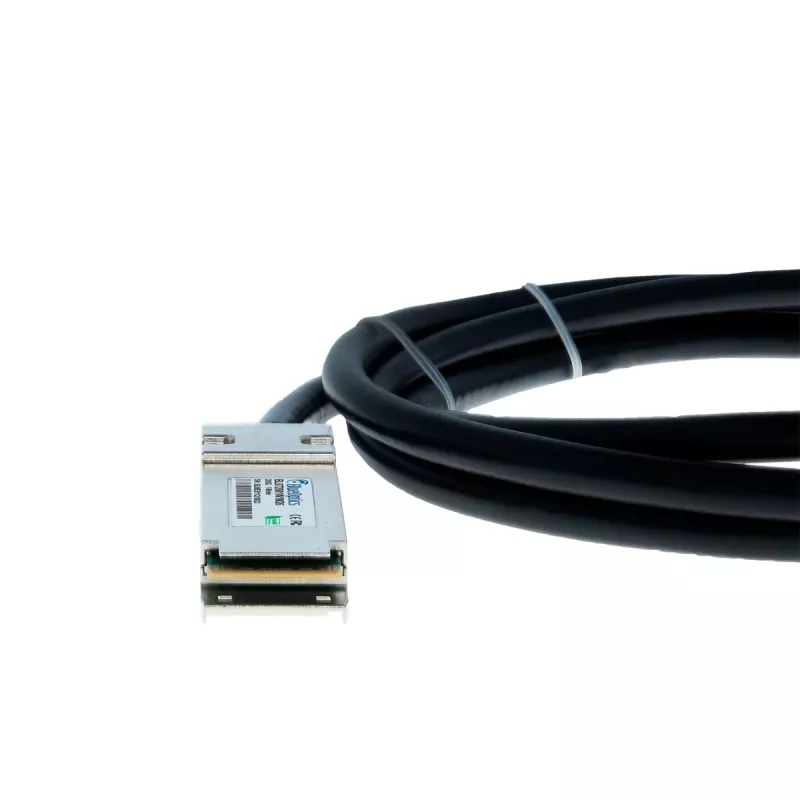

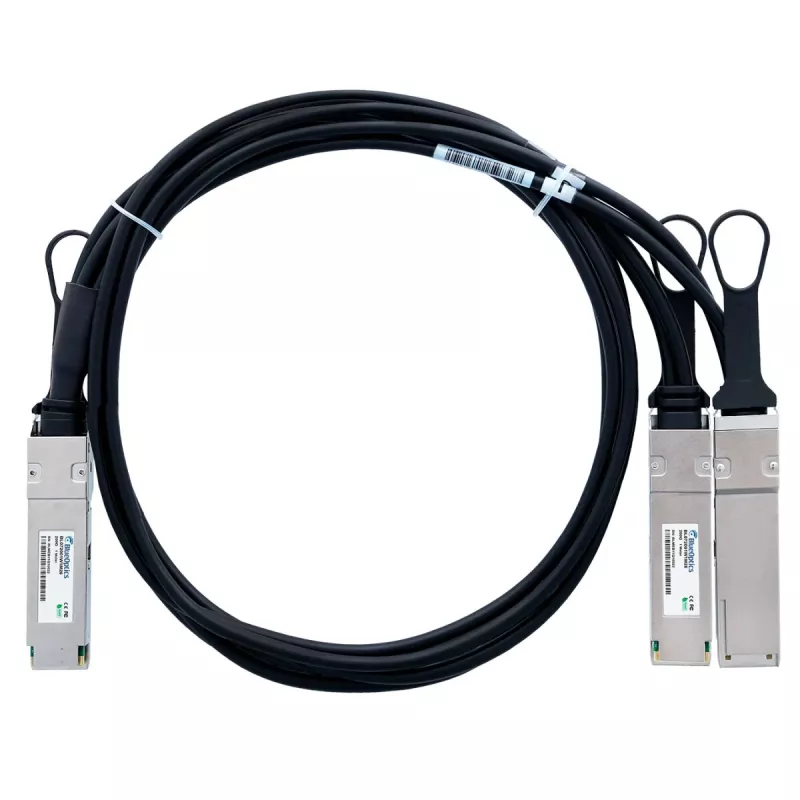

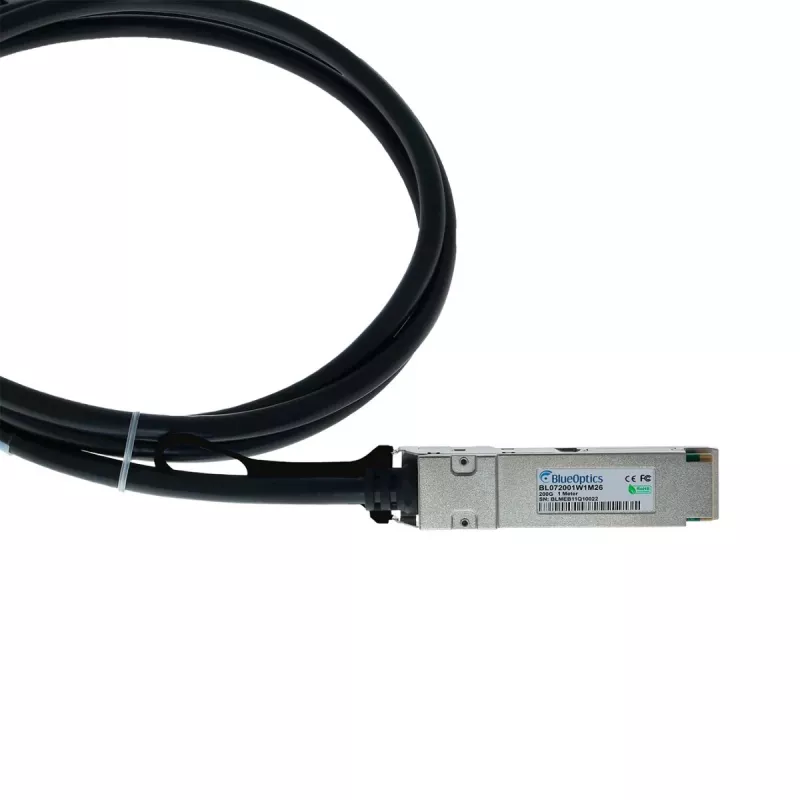

BlueOptics HPE P06248-B23 Compatible BlueLAN QSFP56 Breakout Direct Attach Cable (DAC) - Pasivo 200G a 2x100G Twinaxial Cobre, QSFP56 a 2xQSFP56

The BlueOptics HPE P06248-B23 compatible BlueLAN QSFP56 Breakout Direct Attach Cable (DAC) is a high-performance, passive twinaxial copper cable designed for 200 Gigabit Ethernet to 2x100 Gigabit Ethernet breakout applications. It features a QSFP56 connector on one end and two QSFP56 connectors on the other, enabling efficient connectivity between switches, servers, and storage devices in data centers and high-performance computing environments.

Advantages

This passive DAC cable offers low power consumption, high reliability, and cost-effective connectivity for high-speed networks. Its breakout design allows a single 200G port to connect to two 100G devices, maximizing port utilization and simplifying cable management. The cable is hot-pluggable and compliant with RoHS, CE, and FCC standards, ensuring seamless integration and environmental responsibility.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Top-of-rack to server connections
• Adjacent rack connectivity

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Configuration: Breakout Cable
• Cable Material: Twinaxial Copper
• Cable Nature: Passive
• Data Rate (Input): 200 Gigabit Ethernet (200GBASE-CR4)
• Data Rate (Output): 2x 100 Gigabit Ethernet (2x 100GBASE-CR4)
• Connector A Type: QSFP56
• Connector B Type: 2x QSFP56
• Compatibility: HPE P06248-B23
• Hot-Pluggable: Yes
• Power Consumption: Low (Passive)
• Impedance: 100 Ohm
• Voltage Supply: 3.3V
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: RoHS, CE, FCC
• Protocol Support: Ethernet, InfiniBand (HDR)
• MTBF: > 500,000 hours

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 interfaces and the required data rates. This cable is ideal for short-range, high-speed links within racks or between adjacent racks.
