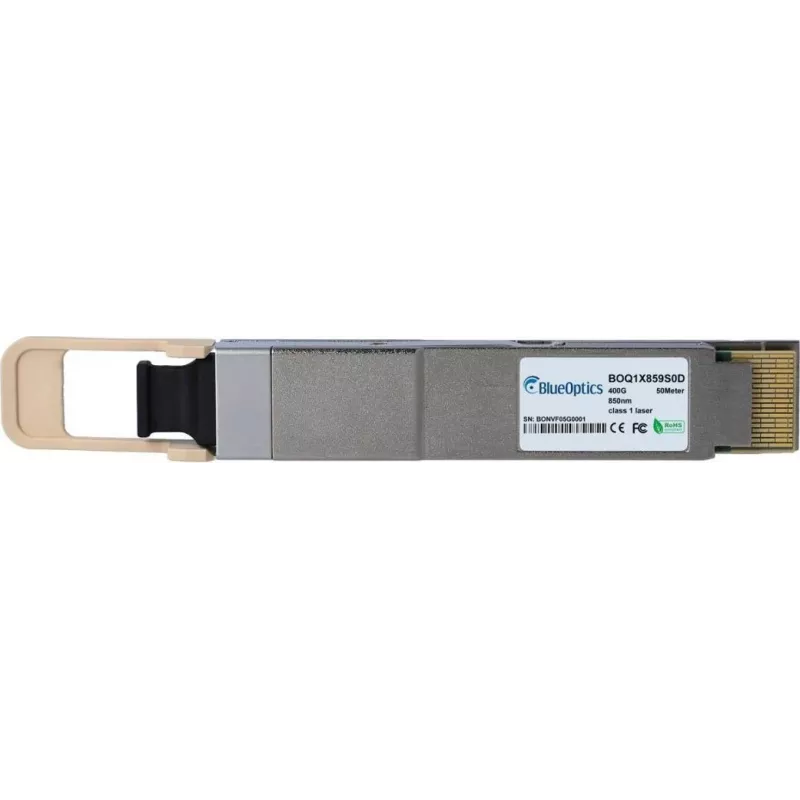

BlueOptics NVIDIA 980-9I693-00NS00 Transceptor QSFP112, MPO-MTP-12/APC, 400GBASE-SR4, Fibra Multimodo, 850nm, 50 metros, 0°C/+70°C, DDM

The BlueOptics 980-9I693-00NS00-BO is a high-performance QSFP112 transceiver designed for 400 Gigabit Ethernet applications. It is fully compatible with NVIDIA 980-9I693-00NS00 equipment and delivers reliable connectivity for data centers and high-performance computing environments.

Advantages

This transceiver offers seamless integration with NVIDIA switches and adapters, ensuring optimal performance and network stability. With support for 400GBASE-SR4 standard, it provides high-speed data transmission over multimode fiber at distances up to 50 meters. The MPO-12/APC connector ensures low insertion loss and high return loss, making it ideal for high-density deployments.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Cloud infrastructure

Key specifications

• Form Factor: QSFP112
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-SR4
• Connector: MPO-12/APC
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Distance: 50 meters
• Operating Temperature: 0°C to +70°C
• DDM: Supported
• Hot-Pluggable: Yes
• Power Supply: 3.3V
• Compliance: IEEE 802.3cm

Recommendations

For optimal performance, use with OM4 or OM5 multimode fiber and ensure proper cleaning of MPO connectors before installation.
