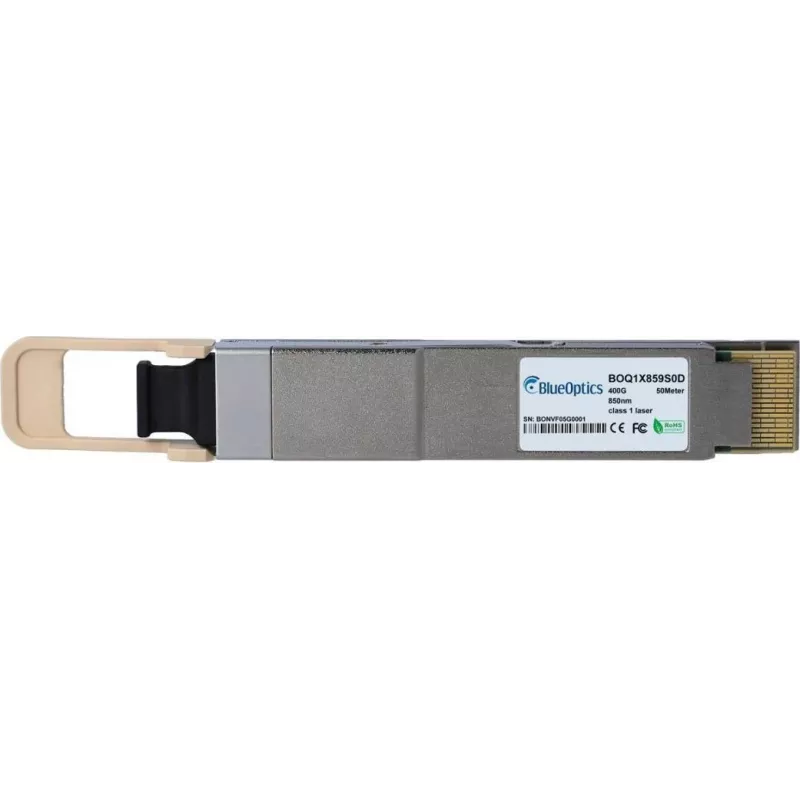

BlueOptics Compatible Supermicro TRX-QSFP112-400G-VR4 Transceptor QSFP112, MPO-12/APC, 400GBASE-SR4, Fibra Multimodo, 850nm, 50 m, 0°C a +70°C, DDM

The BlueOptics TRX-QSFP112-400G-VR4-BO is a high-performance QSFP112 transceiver designed for 400GBASE-SR4 applications. It is fully compatible with Supermicro equipment and offers reliable connectivity over multimode fiber at distances up to 50 meters. With its MPO-12/APC connector and 850nm VCSEL laser, this transceiver delivers exceptional signal integrity for data center and enterprise networks.

Advantages

This transceiver provides a cost-effective, high-speed solution for 400G network upgrades. It supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking and is hot-swappable for easy installation. The wide operating temperature range (0°C to +70°C) ensures stable operation in various environments.

Suitable for

• Data center interconnects
• Short-reach optics applications
• Supermicro networking equipment
• High-bandwidth enterprise networks

Key specifications

• Form Factor: QSFP112
• Max Data Rate: 400 Gbps
• Network Protocol: 400GBASE-SR4
• Connector Type: MPO-12/APC
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Max Reach: 50 meters
• OEM Compatibility: Supermicro TRX-QSFP112-400G-VR4
• DDM Support: Yes
• Operating Temperature Range: 0°C to +70°C
• Hot-Swappable: Yes
• Laser Type: VCSEL
• Host Interface: CAUI-4
• Industry Standards: MSA Compliant
• Fiber Count: 8 (4 Tx, 4 Rx)

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper MPO connector cleaning. This transceiver is ideal for 400G breakout applications and high-density data center environments.
