BLUEOPTICS NVIDIA MMA1Z00-NS400-T Transceptor QSFP112 Compatible, MPO-MTP-12/APC, 400GBASE-SR4, Fibra Multimodo, 850nm, 50 m, 0°C a +70°C, DDM (MMA1Z00-NS400-T-BO)

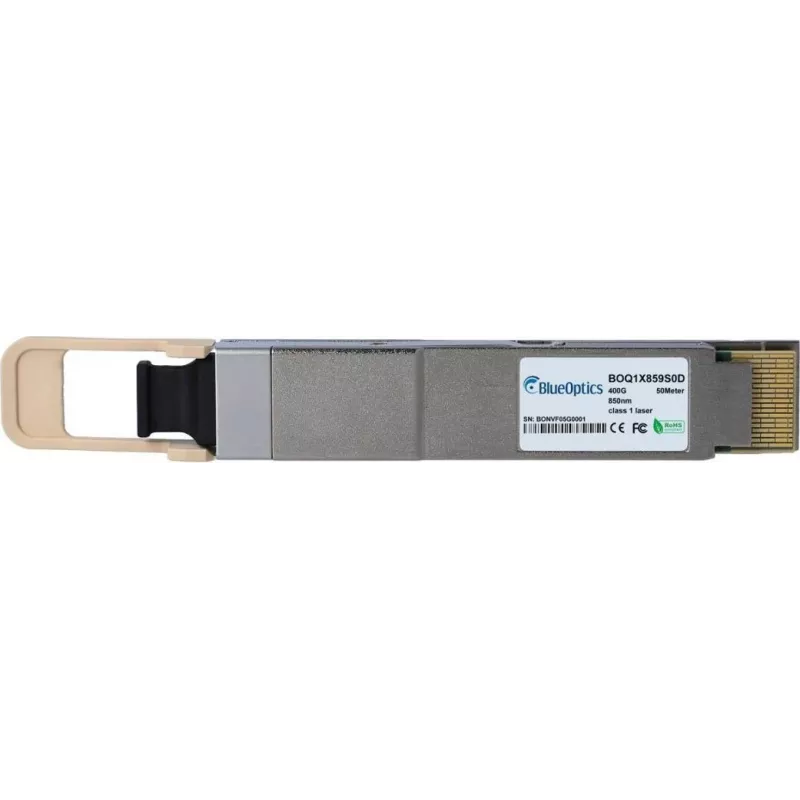

The BLUEOPTICS MMA1Z00-NS400-T-BO is a high-performance QSFP112 transceiver designed for 400 Gigabit Ethernet applications. It is fully compatible with NVIDIA MMA1Z00-NS400-T equipment, ensuring seamless integration into existing networks. This transceiver supports the 400GBASE-SR4 standard over multimode fiber, utilizing MPO-12/APC connectors for efficient high-density cabling.

Advantages

This transceiver offers reliable, high-speed data transmission at 400 Gbps over distances up to 50 meters. It features Digital Diagnostic Monitoring (DDM) for real-time performance tracking, and operates in a wide temperature range from 0°C to +70°C, making it suitable for various environments. The hot-swappable design allows for easy installation and maintenance without network downtime.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise networking
• Telecommunications

Key specifications

• Form Factor: QSFP112
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-SR4
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: MPO-12/APC
• Max Reach: 50 meters
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to +70°C
• Target OEM Compatibility: NVIDIA
• Target OEM Part Number: MMA1Z00-NS400-T
• Transmitter Type: VCSEL
• Receiver Type: PIN Photo Detector
• Optical Channels: 4 Transmit, 4 Receive
• Electrical Interface: 400GAUI-4
• Hot Swappable: Yes
• Protocol: Ethernet

Recommendations

For optimal performance, pair this transceiver with high-quality MPO-12/APC patch cables and ensure proper cleaning of connectors. This transceiver is an ideal solution for upgrading to 400G networks.
