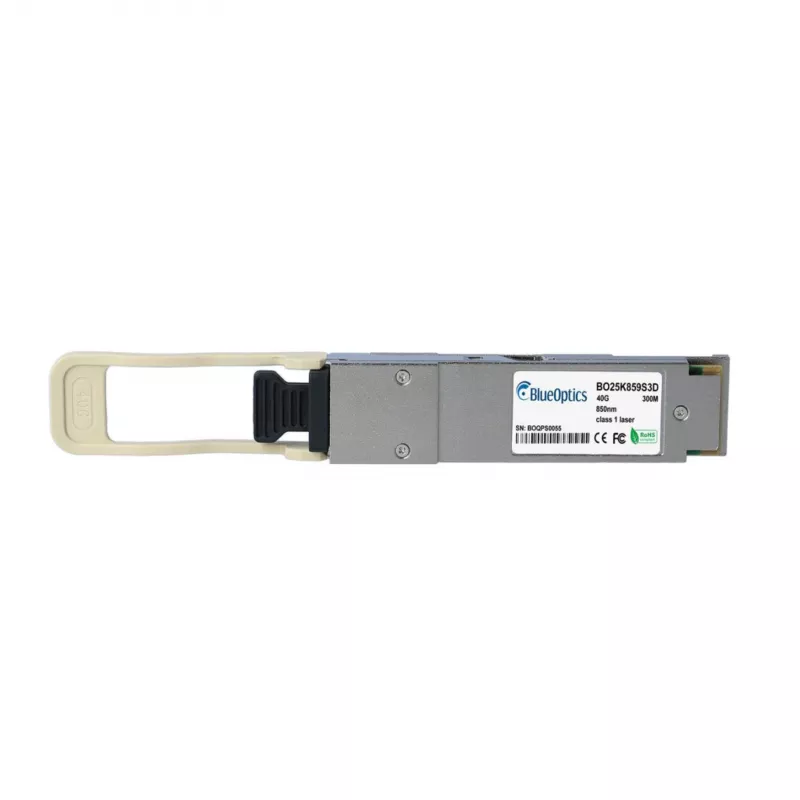

BlueOptics QSFP+ 40GBASE-ESR4 Transceptor compatible con Ruckus E40G-QSFP-ESR4-8 (BO25K859S3D)

The BlueOptics BO25K859S3D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Ruckus E40G-QSFP-ESR4-8 switches and offers reliable connectivity for data centers and enterprise networks.

Advantages

This transceiver delivers 40 Gbps data rate over multimode fiber with MPO/MTP connector, supporting distances up to 300 m on OM3 and 400 m on OM4 fiber. It features low power consumption (<1.5 W), hot-pluggable design, and digital diagnostic monitoring for easy network management.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• High-performance computing (HPC) clusters
• Ruckus E40G-QSFP-ESR4-8 compatible systems

Key specifications

• Transceiver Type: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-ESR4
• Wavelength: 850 nm
• Max Distance: 300 m (OM3), 400 m (OM4)
• Fiber Type: Multimode (MMF)
• Connector: MPO/MTP (12-fiber)
• DDM: Yes
• Power Consumption: <1.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ba, SFF-8436, RoHS

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper MPO connector cleaning. This transceiver is a cost-effective alternative to OEM modules.
