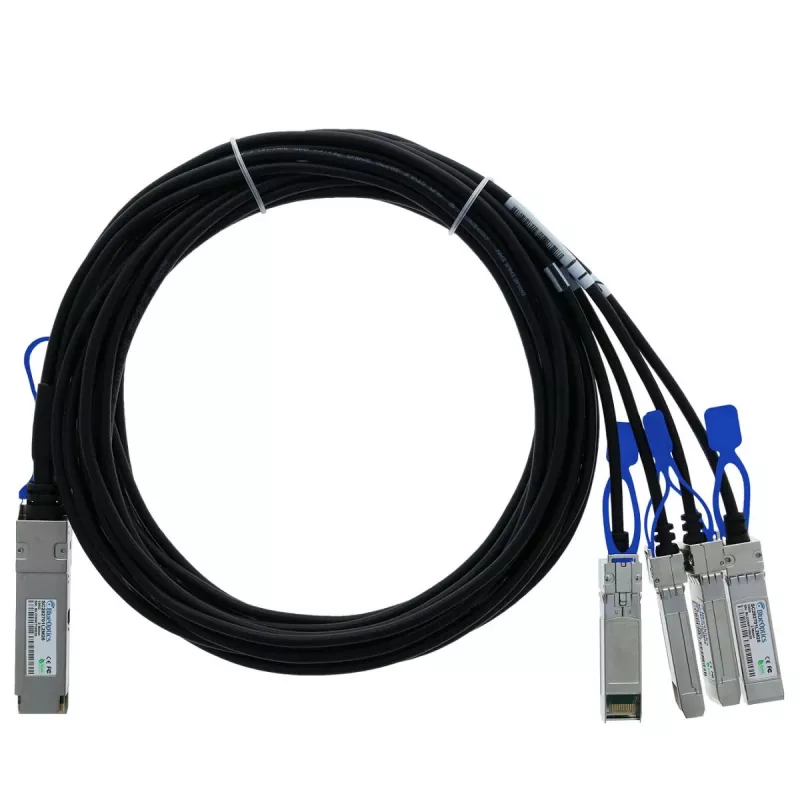

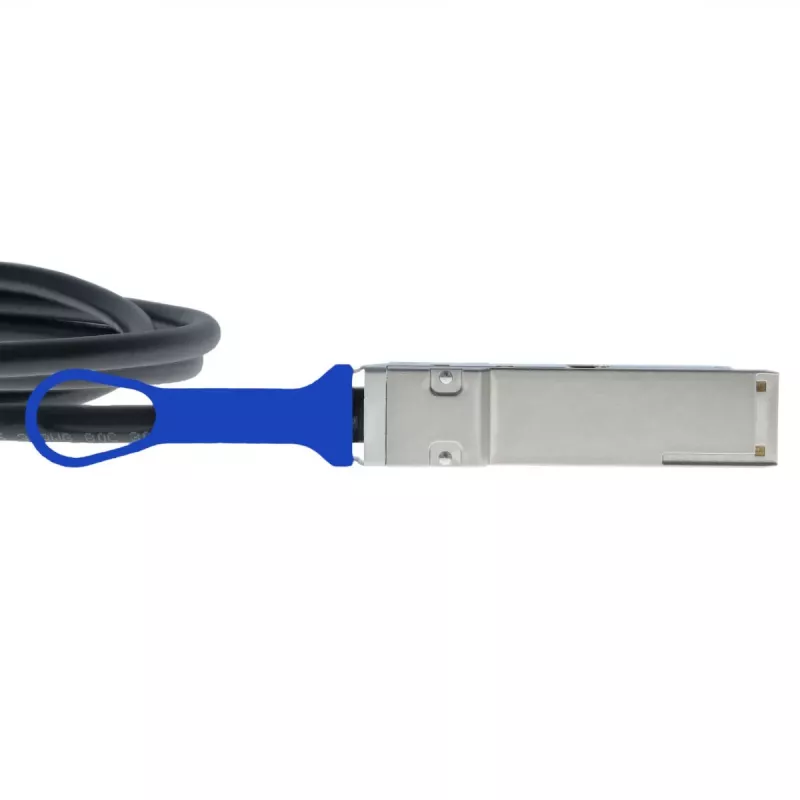

BlueOptics Ruckus 100G-QSFP-4SFP-P-0101 Compatible BlueLAN Cable Breakout DAC QSFP28, 1m

The BlueOptics Ruckus 100G-QSFP-4SFP-P-0101 Compatible BlueLAN QSFP28 DAC Breakout Cable is a high-performance direct attach copper (DAC) cable designed for reliable 100G connectivity in data centers and enterprise networks. This passive breakout cable connects a QSFP28 port to four SFP28 ports, enabling seamless migration to higher speeds.

Advantages

Cost-effective and energy-efficient passive copper design with zero power consumption. Hot-swappable for easy installation and maintenance. Supports 100GBASE-CR4 and 25GBASE-CR standards, ensuring broad compatibility with Ruckus Networks equipment.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking upgrades
• Ruckus 100G-QSFP-4SFP-P-0101 compatible systems

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector End A: QSFP28
• Connector End B: 4x SFP28
• Aggregate Data Rate: 100 Gbps (4x 25 Gbps per lane)
• Cable Length: 1 Meter (3.3 feet)
• AWG: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3bj, SFF-8665, SFF-8402, RoHS

Recommendations

Ensure your equipment supports QSFP28 and SFP28 interfaces. For optimal performance, use within specified temperature range and avoid excessive bending.
