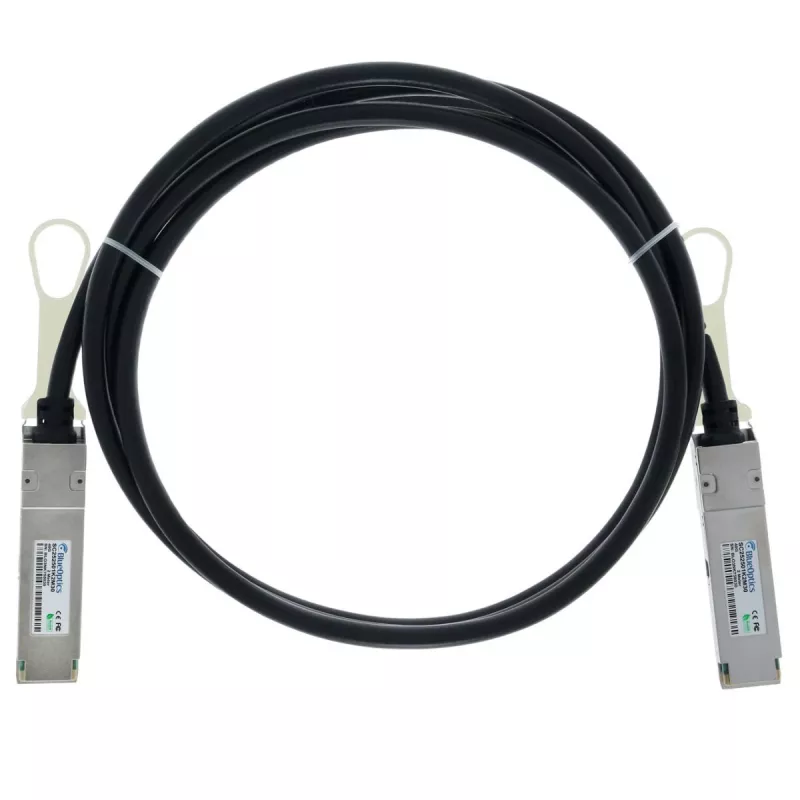

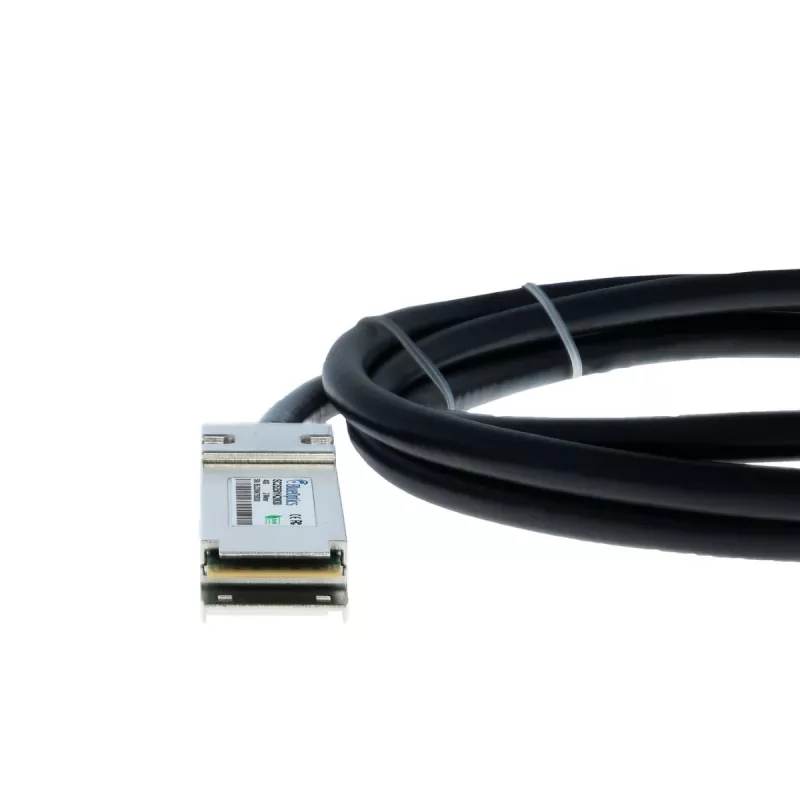

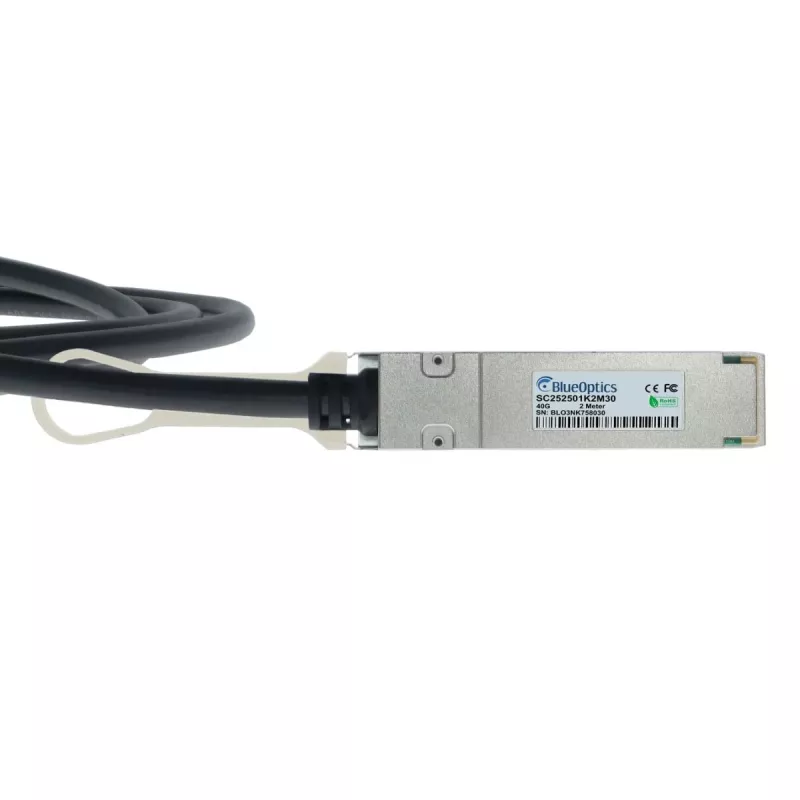

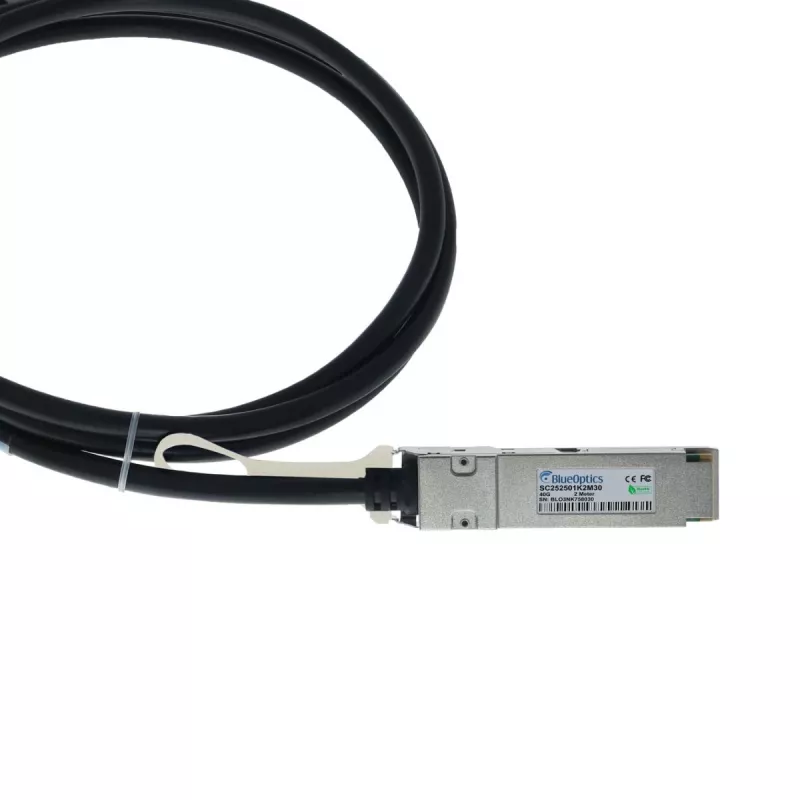

BlueOptics Ruckus 40G-QSFP-QSFP-C-0301 Compatible BlueLAN DAC QSFP+ 3m Cable Twinax Pasivo

The BlueOptics Ruckus 40G-QSFP-QSFP-C-0301 compatible BlueLAN DAC QSFP+ is a high-performance direct attach copper cable designed for 40 Gigabit Ethernet connections. This passive twinax cable provides a reliable, cost-effective solution for short-range interconnects in data centers and enterprise networks.

Advantages

This DAC cable offers low latency, low power consumption, and excellent signal integrity. It is hot-swappable and compliant with SFF-8436 QSFP+ MSA standards, ensuring seamless integration with compatible equipment. The 3-meter length provides flexibility in rack configurations.

Suitable for

• Data center interconnect
• Server-to-switch connections
• Switch-to-switch links
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper Cable
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps (40GbE)
• Cable Length: 3 meters
• Cable Configuration: Passive
• Cable Gauge: 30 AWG
• Hot-Swappable: Yes
• Protocol Support: Ethernet, InfiniBand, Fibre Channel
• Standards Compliance: SFF-8436
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• RoHS Compliant: Yes
• Impedance: 100 Ohm

Recommendations

For optimal performance, use this cable with compatible QSFP+ ports. Ensure proper handling to avoid damage to connectors. This cable is ideal for short-distance, high-speed connections within racks.
