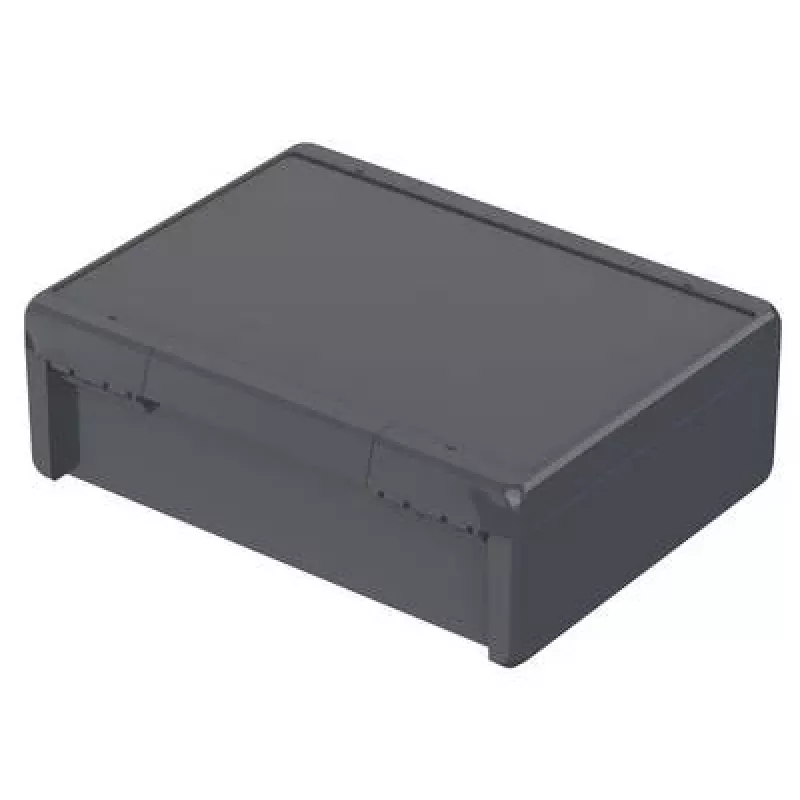

Bopla B 273612 ABS-7024 Carcasa universal Bocube 284 x 364 x 120 mm Grafito (RAL 7024) 96037664

The Bopla Bocube B 273612 stands out with its hinged lid and captive stainless steel screws, allowing quick access without losing parts—a practical advantage over enclosures with separate lids. Its graphite grey ABS body (RAL 7024) offers a clean, industrial look suitable for a wide range of applications.

Highlights

• Hinged lid with captive stainless steel screws for easy opening and closing
• Silicone gasket provides reliable sealing
• Internal mounting bosses for PCBs or mounting plates
• Made from ABS with UL 94 HB flammability rating

In daily use

With external dimensions of 284 x 364 x 120 mm, this enclosure offers ample space for electronics, controls, or measurement equipment. The graphite grey colour blends well in both industrial and commercial environments. The hinged lid stays attached, making maintenance and adjustments faster and safer.

Full specifications

• Series: Bocube
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite Grey (RAL 7024)
• External dimensions (W x L x H): 284 x 364 x 120 mm
• Lid type: Hinged with captive screws
• Lid screws material: Stainless steel
• Gasket material: Silicone
• Flammability rating: UL 94 HB
• Operating temperature range: -35 °C to +80 °C
• Mounting options: Internal mounting bosses, wall mounting via accessories

Final note

A versatile enclosure with convenient hinged access, built to accommodate a variety of internal components.
