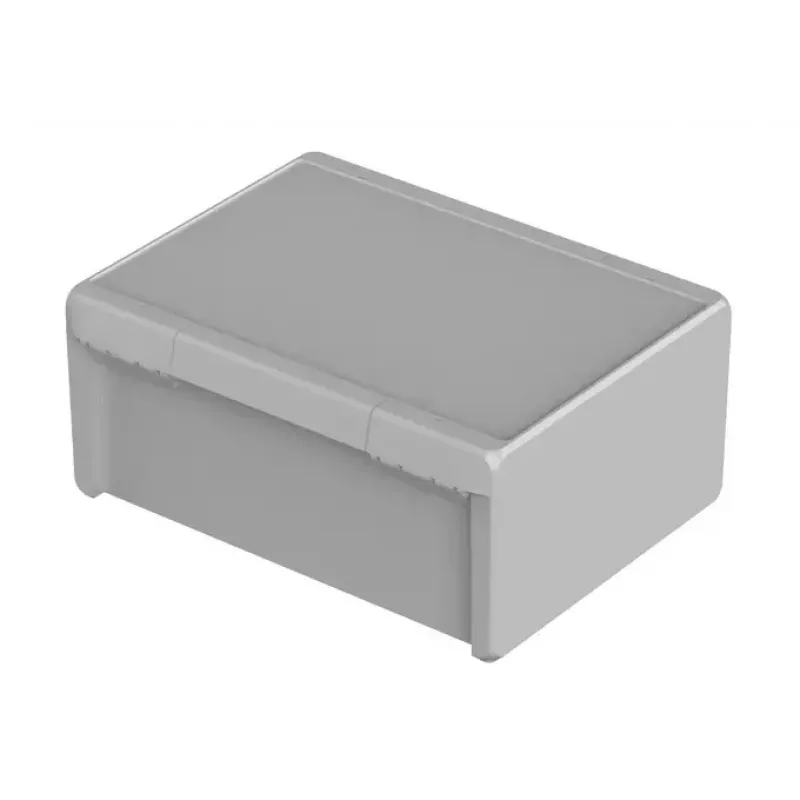

BOPLA Bocube B 273616 PC-V0-7035 carcasa universal, gris claro, 284 x 364 x 160 mm, IP66/IP67 96017675

With an impact rating of IK08 and an ingress protection of IP66/IP67, this BOPLA Bocube enclosure is built to withstand harsh industrial environments. The light grey polycarbonate body (RAL 7035) meets UL 94 V-0 flammability standards, making it suitable for electronics and control systems.

Overview

The BOPLA B 273616 PC-V0-7035 is a universal enclosure from the Bocube B series. It measures 284 x 364 x 160 mm and is made from UV-stabilized, halogen-free polycarbonate. The lid is recessed for membrane keypads and secured with four stainless steel M4 screws. Integrated hinges allow easy access, while internal mounting bosses support DIN rails or mounting plates. Wall mounting is possible via screw channels outside the sealed area.

What stands out

• High protection: IP66 and IP67 against dust and water
• Impact resistance: IK08 rating
• Flame-retardant material: UL 94 V-0
• Wide temperature range: -40°C to +80°C
• Sealed with silicone gasket
• Recessed lid for membrane keypads or overlays

Technical details

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Flammability rating: UL 94 V-0
• Ingress protection: IP66, IP67
• Impact protection: IK08
• Operating temperature: -40°C to +80°C
• Lid fastening: 4x stainless steel M4 screws
• Seal material: Silicone
• Hinge type: Integrated hinges
• Mounting: Internal bosses for DIN rails/mounting plates; wall mounting via screw channels outside sealed area
• Halogen-free: Yes
• UV stabilized: Yes
• RoHS compliant: Yes

Our verdict

A robust, versatile enclosure for demanding industrial applications where protection and durability are paramount.
