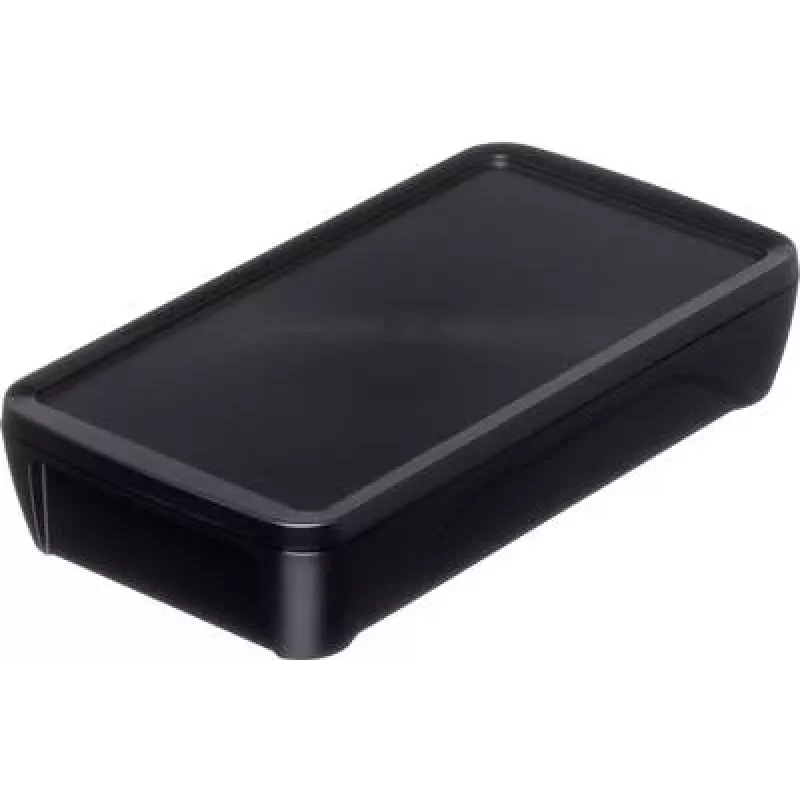

BOPLA BOP 700 BE4MN-9005 Carcasa de mano 165 x 90 x 34 mm ABS negro RAL 9005

When electronics need a robust, ergonomic housing for portable or handheld applications, the BOPLA BOP 700 BE4MN-9005 provides a ready-made solution. This enclosure is crafted from ABS plastic in a jet black finish (RAL 9005), offering a balance of impact resistance and light weight. Its dimensions of 165 x 90 x 34 mm accommodate a variety of control and measurement electronics, making it suitable for industrial, medical, and IoT devices.

Who is it for

Design engineers, product developers, and system integrators who require a reliable handheld enclosure for prototyping or small to medium production runs. It is ideal for applications where the device must be held and operated comfortably, such as remote controls, diagnostic tools, or portable instruments.

Main features

• Material: ABS (Acrylonitrile Butadiene Styrene) for durability and a quality feel
• Colour: Black (RAL 9005) for a professional appearance
• External dimensions: 165 mm length, 90 mm width, 34 mm height
• Two-part construction (top and base) with screwed lid fastening for secure assembly
• Ergonomic design for comfortable handheld use
• Operating temperature range: -20°C to +80°C
• Flammability rating: UL94 HB
• RoHS compliant

Specifications

• Enclosure type: Handheld enclosure
• Material: ABS
• Colour: Black (RAL 9005)
• External length: 165 mm
• External width: 90 mm
• External height: 34 mm
• Protection class: IP40
• Mounting type: Handheld
• Lid fastening: Screwed
• Number of enclosure parts: 2
• Operating temperature range: -20°C to +80°C
• Flammability rating: UL94 HB
• RoHS compliant: Yes

Tips

When designing your PCB layout, consider the internal dimensions and the screw bosses to ensure a proper fit. For applications requiring higher ingress protection, additional sealing may be necessary as this enclosure is rated IP40.
