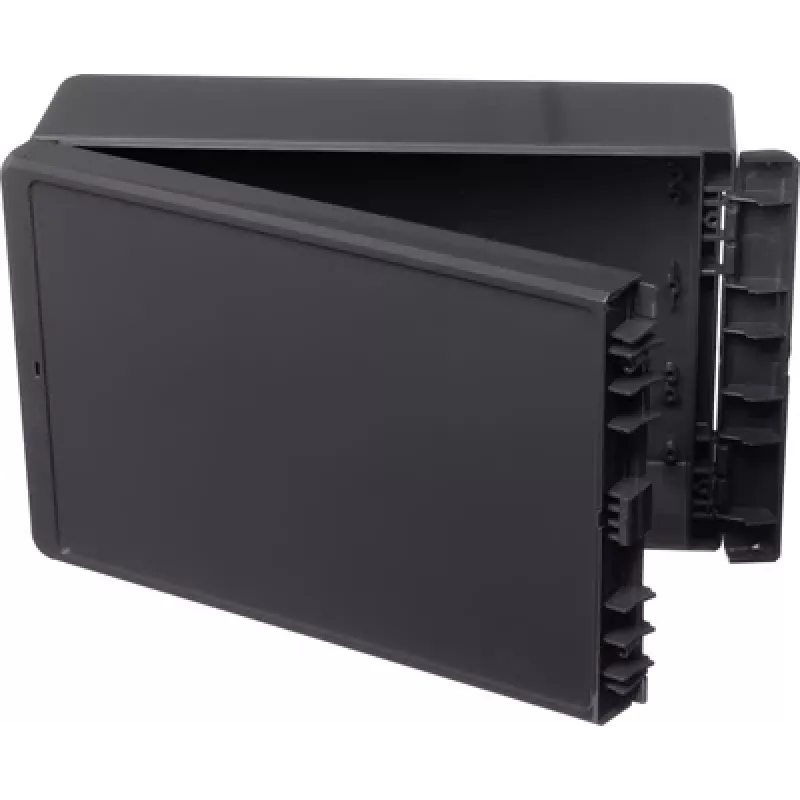

BOPLA Carcasa de instalación de montaje en pared, ABS gris grafito (RAL 7024), 170 x 271 x 90 mm 96036334

Wall-mount installation enclosure made of ABS in graphite grey (RAL 7024), providing a robust housing for electrical and electronic components. Its screw-on lid with PU foam gasket ensures a secure seal, while internal mounting bosses allow for easy installation of PCBs or DIN rails.

Advantages

ABS construction offers impact resistance (IK07) and a wide operating temperature range from -40°C to +80°C. The enclosure is halogen-free and meets UL 94 HB flammability rating, making it suitable for various industrial applications.

Suitable for

• Electrical junction boxes
• Industrial control systems
• Electronic device housings
• Wall-mounted installations

Key specifications

• External dimensions: 170 mm (W) x 271 mm (L) x 90 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite grey (RAL 7024)
• Mounting type: Wall-mounted / Surface-mounted
• Lid fastening: Screw-on with stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Impact resistance: IK07
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 HB
• Halogen-free: Yes

Recommendations

Ideal for protecting electronic components in demanding environments, this enclosure offers reliable performance and easy installation.
