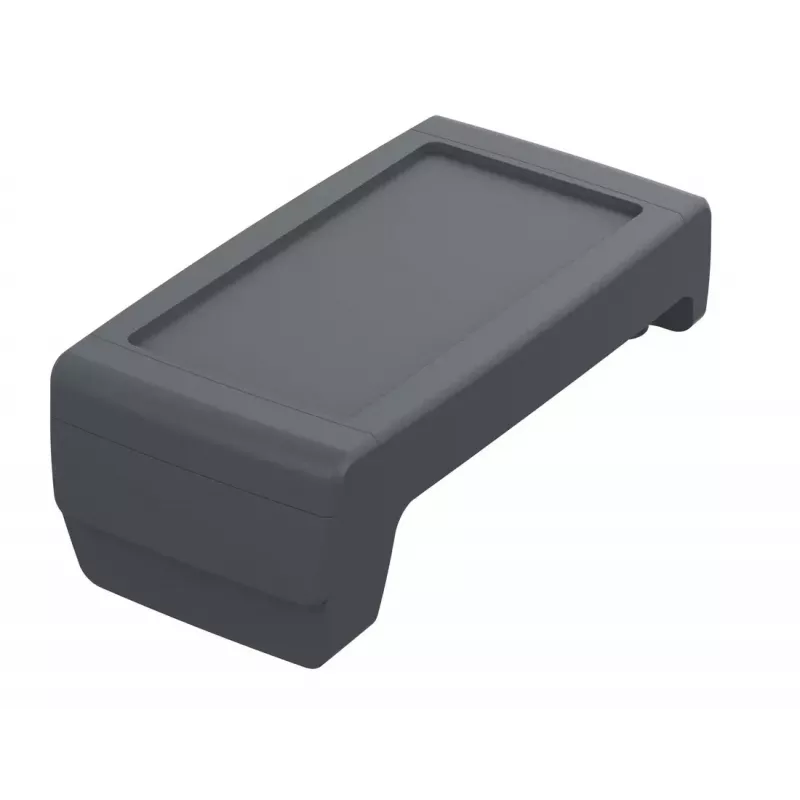

Bopla Carcasa universal 145,3 x 74,7 x 51 mm ABS gris grafito C 1435 P-FP-7024 (93143524)

The Bopla Universal Enclosure offers a practical solution for housing electronics in demanding environments. Its ABS construction in graphite grey (RAL 7024) provides a robust yet lightweight shell, while the screwed lid ensures secure access for maintenance. With external dimensions of 145.3 x 74.7 x 51 mm, it accommodates a variety of PCBs and components, making it suitable for control systems, measurement technology, and general electronics projects.

Highlights

• ABS material with UL 94 V-0 flammability rating for enhanced safety
• Graphite grey colour (RAL 7024) for a professional appearance
• Screwed lid for secure closure and easy access
• Internal PCB mounting bosses simplify assembly
• Operating temperature range from -40 to +80 °C for versatile use

In daily use

This enclosure is well-suited for desktop or wall mounting, offering flexibility in installation. Its IP40 protection class guards against solid objects larger than 1 mm, making it appropriate for indoor applications. The smooth surface finish allows for easy cleaning and labeling. Whether you are prototyping a new device or building a small series, the Bopla Universal Enclosure provides a reliable housing solution.

Full specifications

• Product Type: Universal Enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite Grey (RAL 7024)
• External Length: 145.3 mm
• External Width: 74.7 mm
• External Height: 51 mm
• Series: CombiNorm-Connect
• Protection Class: IP40
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -40 to +80 °C
• Lid Fastening: Screwed
• Internal Mounting: PCB Mounting Bosses
• Number of Components: 2 (Base, Lid)
• Surface Finish: Smooth
• Application: Electronics, Control Systems, Measurement Technology
• Mounting Type: Desktop, Wall Mount

Final note

A dependable enclosure for your electronic projects, combining durability and ease of use.
