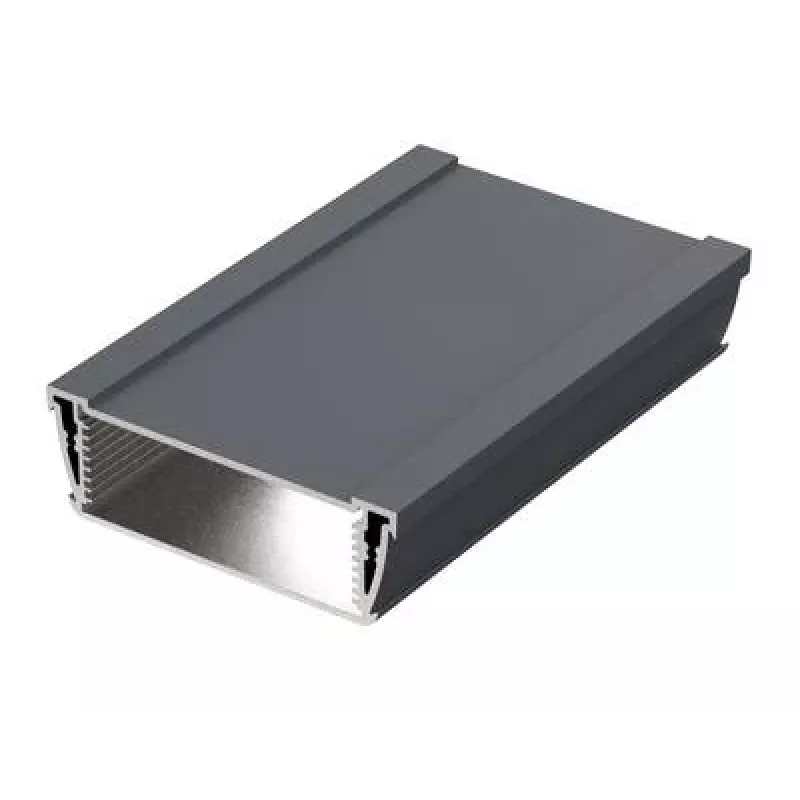

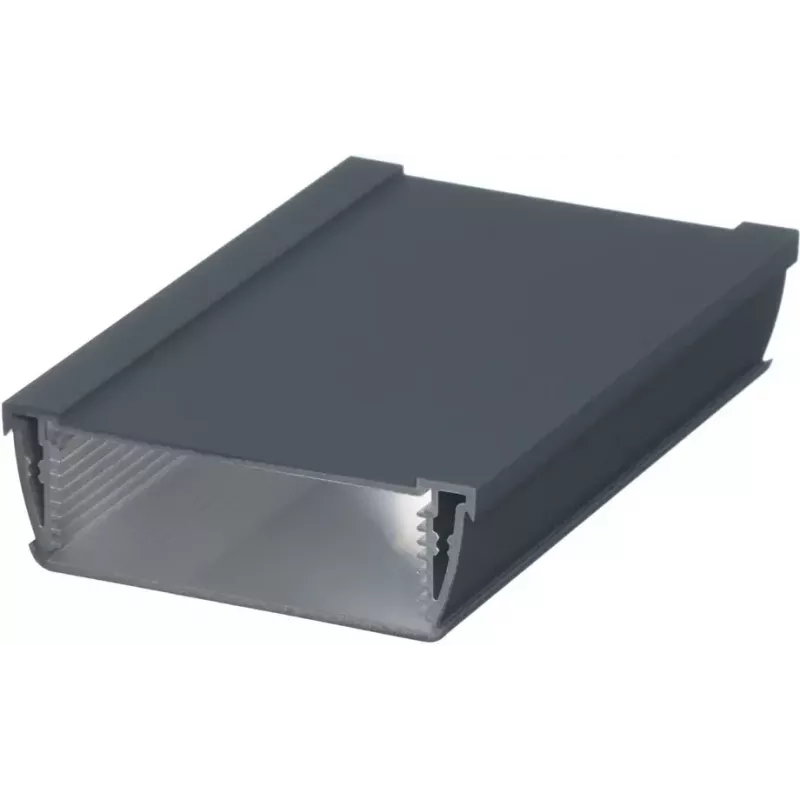

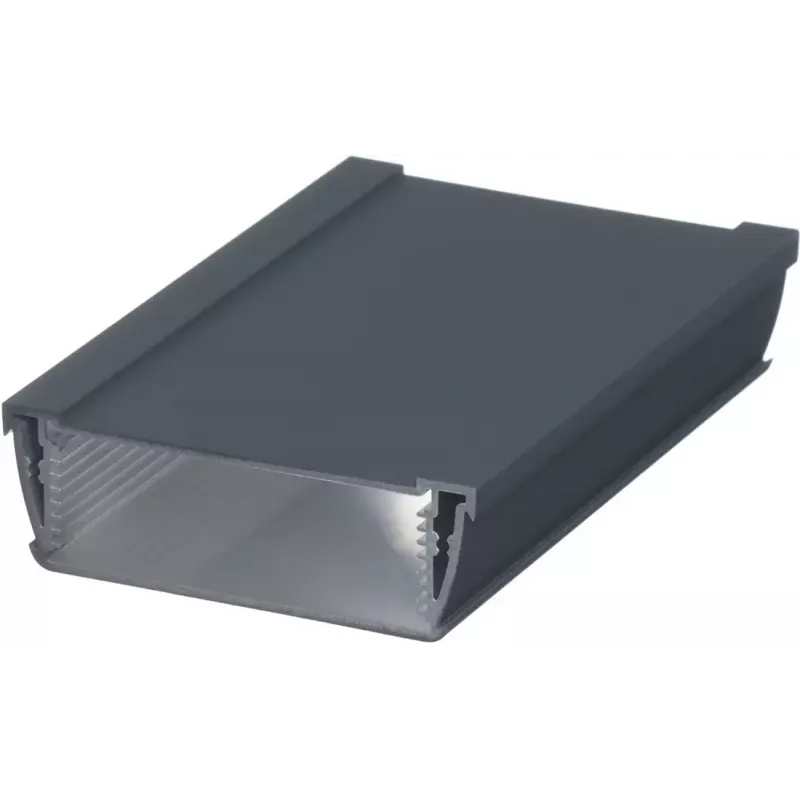

Bopla carcasa universal 150 x 98,5 x 32,8 mm fundición inyectada gris grafito (RAL 7024) ASPH 1030-150 94122150.MT1

The Bopla ASPH 1030-150 stands out with its die-cast aluminium construction, offering superior rigidity and thermal performance compared to plastic enclosures. Its graphite grey powder coating provides a durable finish suitable for industrial environments.

Highlights

• Die-cast aluminium body for robust protection
• Graphite grey (RAL 7024) powder-coated surface
• External dimensions: 150 x 98.5 x 32.8 mm
• Integrated mounting bosses for PCBs or DIN rails
• Neoprene gasket and stainless steel lid screws included

In daily use

This enclosure is ideal for housing electronics in automation, measurement, or control applications. The four stainless steel screws secure the lid, while the neoprene gasket ensures a tight seal. Internal bosses simplify mounting of components without additional drilling.

Full specifications

• Material: Die-cast aluminium
• Colour: Graphite grey (RAL 7024)
• External dimensions: 150 mm (L) x 98.5 mm (W) x 32.8 mm (H)
• Protection class: IP66
• Impact resistance: IK08
• Operating temperature range: -40°C to +100°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Neoprene
• Surface treatment: Powder coated
• Internal mounting: Integrated mounting bosses for PCBs/DIN rails

Final note

A reliable choice for demanding industrial environments where durability and protection are paramount.
