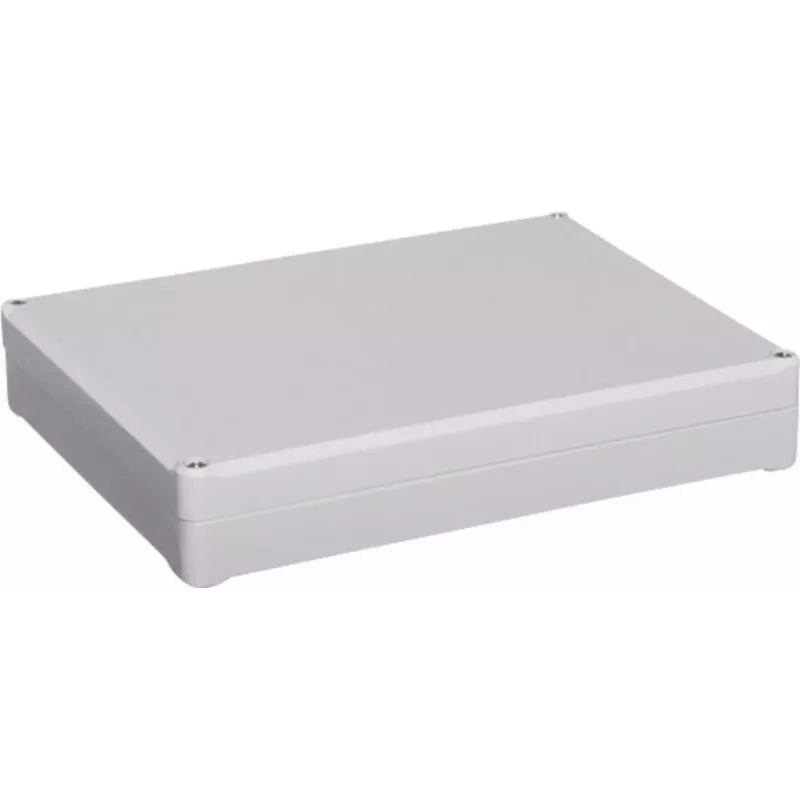

Bopla carcasa universal 200 x 150 x 37 ABS gris claro (RAL 7035) ET 232 63232000

This Bopla universal enclosure provides a robust housing for electronics in industrial and commercial settings. Its 200 x 150 x 37 mm size accommodates PCBs and small assemblies, while the light grey ABS body offers a clean, professional appearance.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 200 x 150 x 37 mm
• IP rating: IP 40
• Operating temperature range: -40 to +70 °C
• Flammability rating: UL 94 HB
• Lid fastening: Screwed (4 steel, zinc-plated screws)
• Internal mounting: Mounting bosses for PCBs/mounting plates
• Series: ET Series

Why choose it

The ABS material balances impact resistance with light weight, and the RAL 7035 light grey suits many control cabinet and panel designs. The screwed lid ensures secure closure, while internal mounting bosses simplify assembly.

Ideal use cases

• Industrial control units
• Measurement and monitoring devices
• Custom electronics projects
• Junction boxes in dry environments

Good to know

The enclosure is rated IP 40, suitable for indoor use where protection against solid objects greater than 1 mm is needed. It is not intended for wet or dusty environments.
