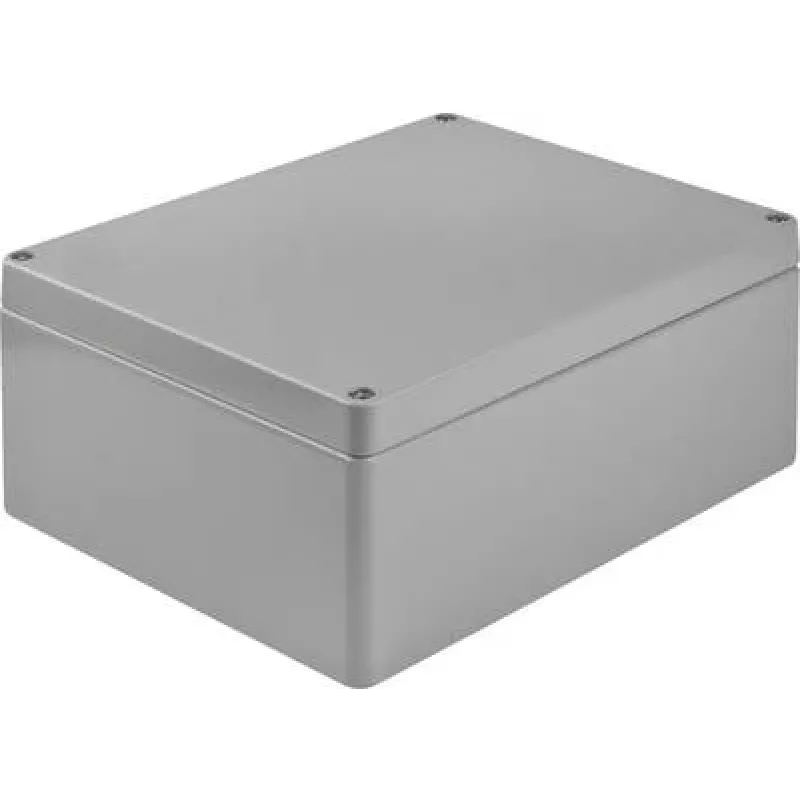

Bopla carcasa universal 280 x 230 x 111 aluminio gris plata (RAL 7001) A 155 01155000.H

Universal aluminium enclosure for industrial electronics, offering a robust IP66-rated housing with external dimensions of 280 x 230 x 111 mm. Its powder-coated silver-grey (RAL 7001) finish ensures durability and corrosion resistance in demanding environments.

Advantages

Constructed from high-quality aluminium, this enclosure provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor applications. The screwed lid with neoprene gasket ensures a secure seal, while internal bosses allow easy mounting of plates or PCBs.

Suitable for

• Industrial automation systems
• Measurement and control technology
• Electrical distribution and junction boxes
• Outdoor electronic installations

Key specifications

• Material: Aluminium
• External dimensions: 280 mm (L) x 230 mm (W) x 111 mm (H)
• Colour: Silver-grey (RAL 7001)
• Protection class: IP66
• Lid fastening: Screwed
• Gasket material: Neoprene
• Operating temperature: -40°C to +100°C
• Surface treatment: Powder-coated
• Internal mounting: Bosses for mounting plates/PCBs
• Series: A Series

Recommendations

Ideal for engineers seeking a reliable, weatherproof enclosure for sensitive electronics in industrial settings.
