Bopla carcasa universal 400 x 310 x 181 aluminio gris plata (RAL 7001) A 185 01185000.H

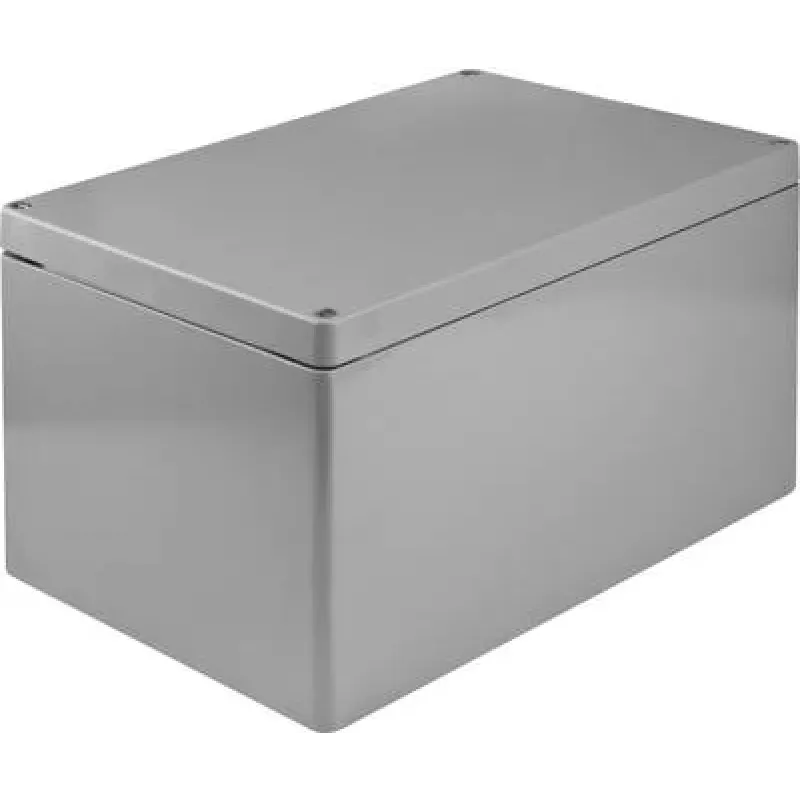

The Bopla A 185 universal enclosure offers a spacious 400 x 310 x 181 mm aluminium die-cast housing finished in silver-grey (RAL 7001). Its robust construction and IP66 protection make it suitable for demanding industrial electronics applications.

Highlights

• Die-cast aluminium (Al Si 12) body for strength and durability
• Powder-coated silver-grey finish (RAL 7001)
• IP66 protection against dust and water jets
• Captive stainless steel lid screws for secure closure
• Neoprene gasket ensures reliable sealing
• Wide operating temperature range: -40 °C to +100 °C

In daily use

This enclosure provides a reliable housing for control systems, measurement technology, and general-purpose electronics. Internal mounting bosses simplify component installation, while optional wall-mounting accessories allow flexible placement.

Full specifications

• External dimensions: 400 x 310 x 181 mm (L x W x H)
• Material: Aluminium die-cast (Al Si 12)
• Colour: Silver-grey (RAL 7001)
• Protection class: IP66 (EN 60529)
• Temperature range: -40 °C to +100 °C
• Surface treatment: Powder-coated
• Lid screws: Stainless steel, captive
• Gasket material: Neoprene
• Series: Bopla A Series
• Mounting: Internal bosses, external wall mounting possible (with accessories)

Final note

A versatile and rugged enclosure for industrial electronics where protection and space are critical.
