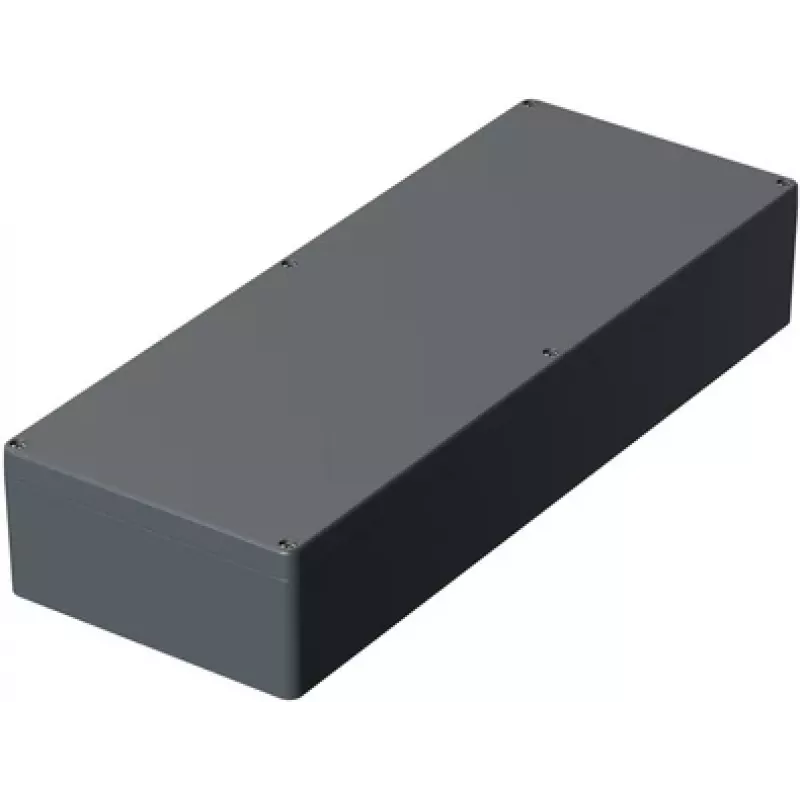

Bopla carcasa universal 600 x 230 x 111 aluminio gris plateado (RAL 7001) A 169 01169000.H

Engineers and technicians building industrial control systems, measurement technology, or junction boxes often need a robust enclosure that can withstand harsh environments while providing ample space for components. The Bopla Universal Enclosure A 169 offers a spacious die-cast aluminium housing with external dimensions of 600 x 230 x 111 mm, finished in silver-grey (RAL 7001) powder coating. It is suitable for wall mounting and provides IP66 protection against dust and water ingress.

Key specifications

• Material: Die-cast aluminium
• External dimensions: 600 mm (L) x 230 mm (W) x 111 mm (H)
• Colour: Silver-grey (RAL 7001)
• Protection class: IP66
• Lid fastening: Screw-on with stainless steel screws
• Surface finish: Powder-coated
• Internal mounting options: Guide grooves for PCBs, mounting bosses
• Operating temperature range: -40°C to +100°C
• Gasket material: Neoprene
• Series: A Series

Why choose it

The die-cast aluminium construction provides excellent mechanical stability and heat dissipation, while the powder-coated surface offers corrosion resistance. The IP66 rating ensures reliable operation in dusty or wet environments, and the neoprene gasket maintains the seal over a wide temperature range. Internal guide grooves and mounting bosses simplify installation of PCBs and other components.

Ideal use cases

• Industrial electronics housing
• Control systems
• Measurement technology
• Junction boxes

Good to know

The enclosure is part of the Bopla A Series, designed for universal applications. It is supplied as a single unit. The lid is secured with stainless steel screws for durability and resistance to corrosion.
