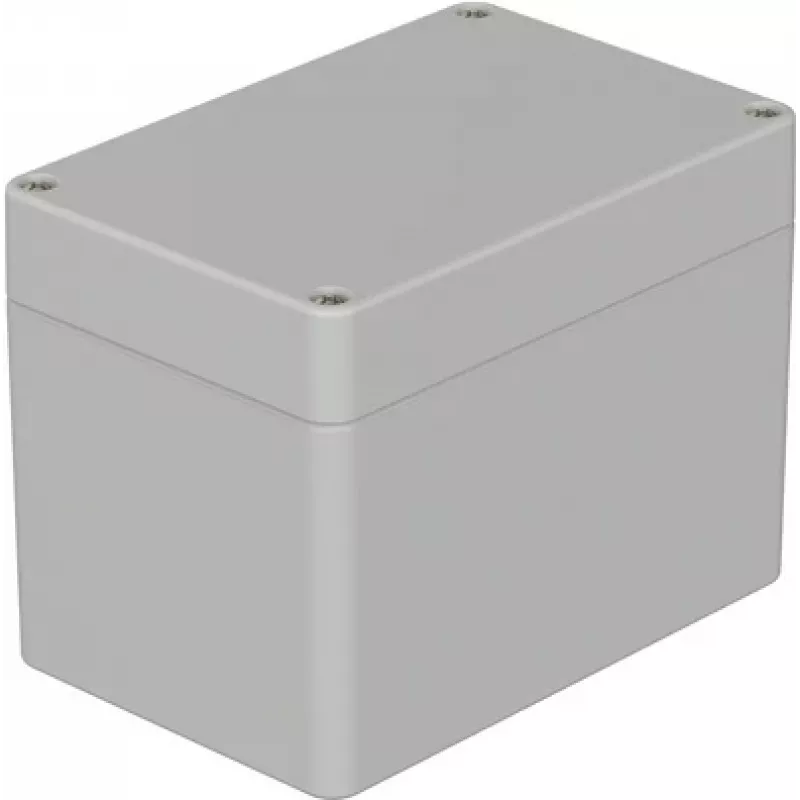

BOPLA carcasa universal ABS gris claro 120 x 80 x 90 T 230 03230000

Universal enclosure made of ABS in light grey (RAL 7035), offering a robust housing for electronic components. Its solid, opaque lid and polyurethane gasket provide reliable protection for indoor applications.

Advantages

ABS construction delivers impact resistance and a wide operating temperature range from -40 °C to +80 °C. The enclosure includes wall mounting channels and internal mounting bosses for flexible installation.

Suitable for

• Electrical and electronic device housing
• Control units and instrumentation
• Wall-mounted installations

Key specifications

• External dimensions: 120 mm x 80 mm x 90 mm
• Material: ABS (UL 94 HB)
• Colour: Light grey (RAL 7035)
• Lid screws: Stainless steel
• Gasket: Polyurethane (PUR)

Recommendations

Verify the internal dimensions and mounting boss positions against your PCB layout before ordering.
