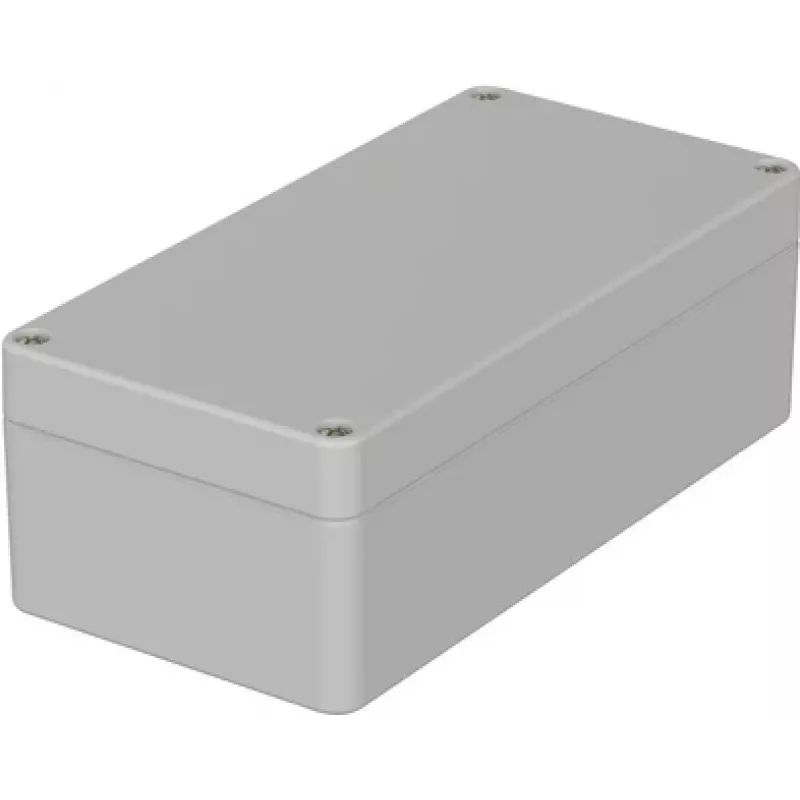

BOPLA carcasa universal ABS gris claro 160 x 80 x 55 mm T 220 03220000

This BOPLA universal enclosure is used by industrial control engineers and IoT developers to house electronics in demanding environments. Made from light grey ABS, it provides a robust housing for PCBs and components.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 160 x 80 x 55 mm (L x W x H)
• Internal dimensions: 154 x 74 x 48 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting: Integrated screw bosses for PCB/mounting plate
• Wall mounting: Possible via mounting holes or optional wall brackets
• Halogen-free: Yes
• RoHS compliant: Yes
• Surface finish: Smooth
• Enclosure type: Universal enclosure
• Number of components: 2 (base, lid) + screws + gasket

Why choose it

The ABS construction offers a balance of impact resistance and lightweight durability. The IP65 rating ensures protection against dust and water jets, making it suitable for indoor and outdoor applications. The included gasket and stainless steel screws provide a secure seal.

Ideal use cases

• Industrial control units
• IoT devices and sensor housings
• Junction boxes
• Custom electronics projects

Good to know

The enclosure is halogen-free and RoHS compliant, meeting environmental standards. The light grey colour (RAL 7035) is a common industrial finish that blends well in control cabinets.
