BOPLA Carcasa universal ABS gris grafito 145,3 x 74,7 x 34 mm C 1435 F-FP RAL 7024 93143522

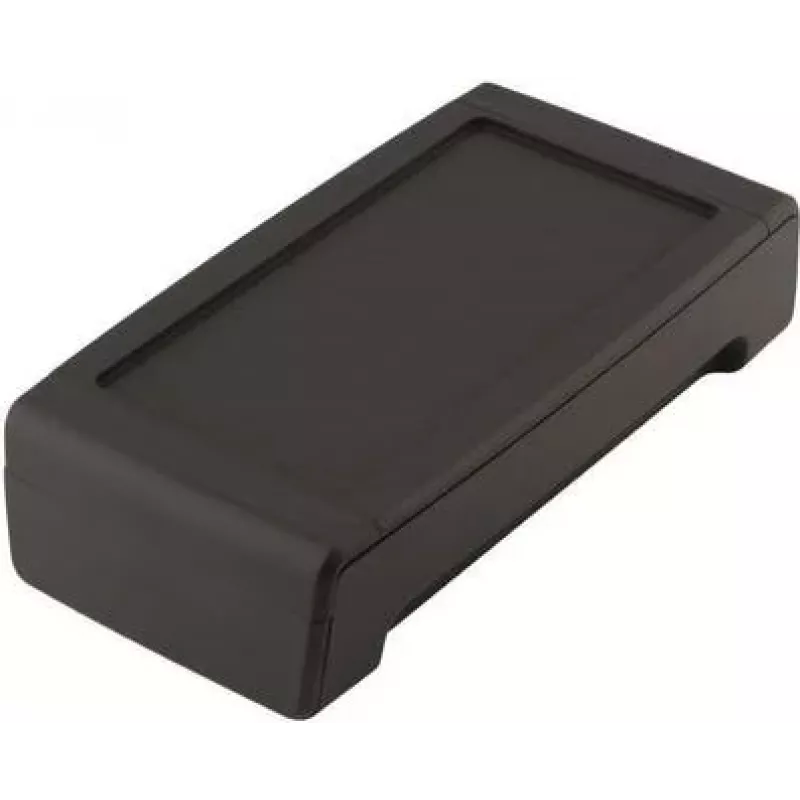

This BOPLA universal enclosure offers a compact housing solution with external dimensions of 145.3 x 74.7 x 34 mm, crafted from ABS in graphite grey (RAL 7024). Its recessed lid is designed to accommodate membrane keypads or front panels, making it suitable for electronic controls and measurement devices.

Overview

The C 1435 F-FP belongs to the C Series of rectangular universal enclosures. The ABS material provides a matte surface finish and meets UL 94 HB flammability standards. With an IP40 protection rating, it is intended for indoor applications where basic protection against solid objects is required.

What stands out

• Recessed lid area for membrane keypads or front panels
• Internal mounting bosses for PCB installation
• Graphite grey colour matching RAL 7024
• Operating temperature range from -20°C to +80°C

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 145.3 mm (L) x 74.7 mm (W) x 34 mm (H)
• Protection rating: IP40
• Flammability rating: UL 94 HB
• Lid type: Recessed lid
• Mounting: Internal mounting bosses for PCBs
• Series: C Series
• Design: Rectangular
• Surface finish: Matte
• Operating temperature: -20°C to +80°C

Our verdict

A practical enclosure for custom electronic projects, offering a clean look and easy integration of front panels.
