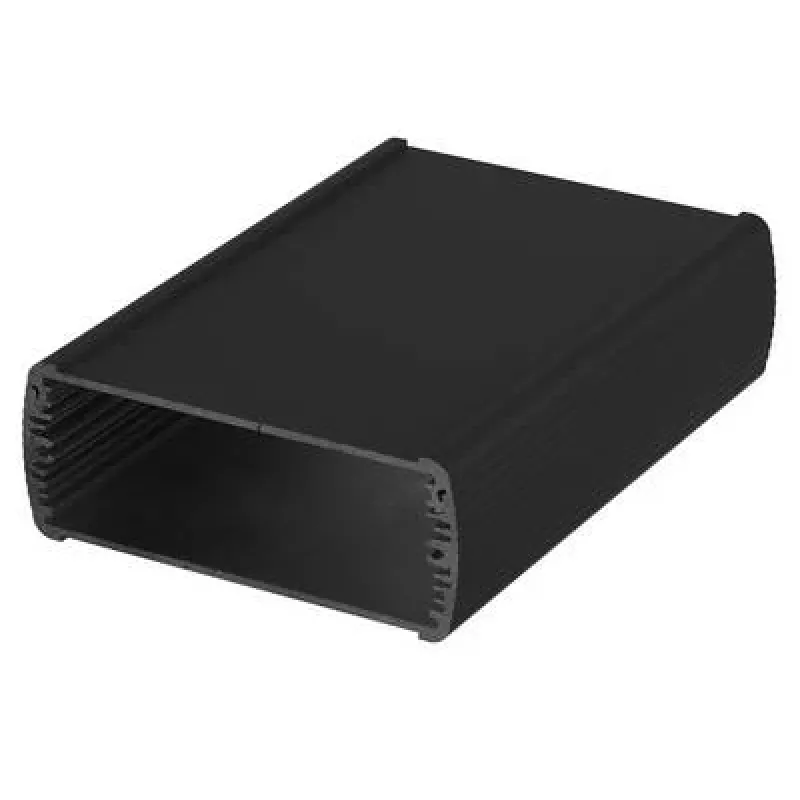

BOPLA carcasa universal aluminio negro 150 x 108 x 42 ABPH 1040-150 84046150

Protect sensitive electronics in demanding industrial environments with the BOPLA ABPH 1040-150 universal enclosure. Its robust aluminium body and secure screw-on lid shield components from dust, moisture, and mechanical stress, ensuring reliable operation in automation and control systems.

Who is it for

Engineers, system integrators, and technicians who need a durable, IP65-rated housing for electronics in industrial, automation, or control applications. Ideal for wall-mounted or desktop installations where space is limited and protection is critical.

Main features

• Sturdy aluminium construction with black powder-coated finish
• External dimensions: 150 mm length × 108 mm width × 42 mm height
• IP65 protection against dust and water jets
• Screw-on lid for secure closure and easy access
• Suitable for wall mounting or desktop use
• Operating temperature range: -40°C to +100°C

Specifications

• Material: Aluminium
• Colour: Black
• External dimensions (L × W × H): 150 × 108 × 42 mm
• Series: ABPH
• Lid fastening: Screw-on
• Surface treatment: Powder-coated
• Mounting type: Wall mountable, Desktop
• Number of components: 2 (base, lid) + screws
• Gasket material: Neoprene

Tips

When selecting an enclosure, verify that the internal dimensions accommodate your PCB and components. For outdoor use, consider additional UV protection or a sun shield to extend the enclosure's life.
