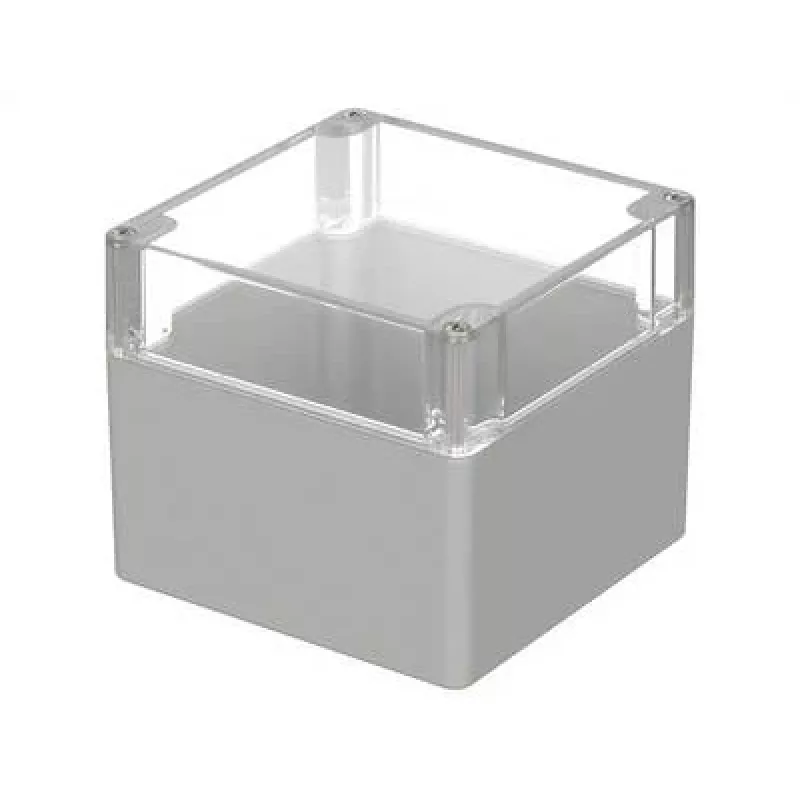

BOPLA carcasa universal policarbonato gris claro 122 x 120 x 105 M 228 G 1 ud. (02228100)

Ideal for housing electronics in industrial settings, this BOPLA universal enclosure offers a robust and versatile solution. The light grey polycarbonate body measures 122 x 120 x 105 mm, providing ample space for PCBs and components. It is well-suited for applications requiring protection against dust and water ingress, such as control units, sensor housings, and junction boxes.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Dimensions (W x H x D): 122 x 120 x 105 mm
• Ingress protection: IP65
• Impact protection: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Lid fastening: 4x stainless steel screws (captive)
• Gasket material: Polyurethane (PUR)
• Internal mounting: Mounting bosses for PCBs/mounting plates
• Wall mounting: Yes (with optional accessories)
• Halogen-free: Yes

Why choose it

The enclosure's polycarbonate construction offers excellent impact resistance and good UV stability, making it suitable for both indoor and outdoor use. The IP65 rating ensures reliable protection against dust and low-pressure water jets, while the IK07 rating provides confidence in demanding environments. The captive stainless steel screws simplify assembly and maintenance.

Ideal use cases

• Industrial control units
• Sensor and measurement device housings
• Junction boxes for electrical connections
• Outdoor electronics enclosures

Good to know

The enclosure is halogen-free and offers good chemical resistance to many acids, alkalis, and oils. Optional wall-mounting accessories allow for flexible installation. The solid lid and PUR gasket ensure a secure seal.
