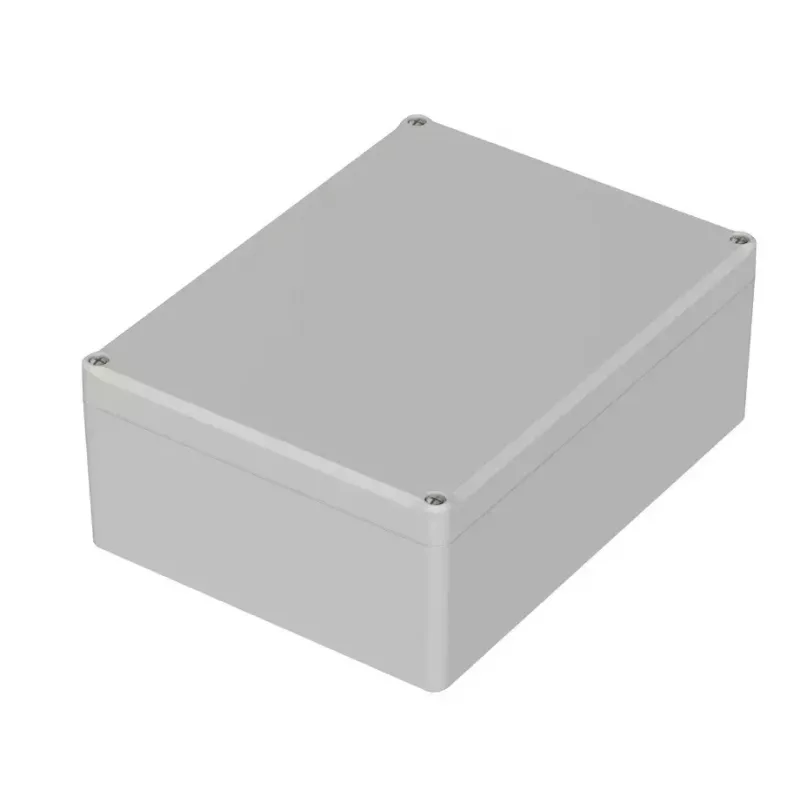

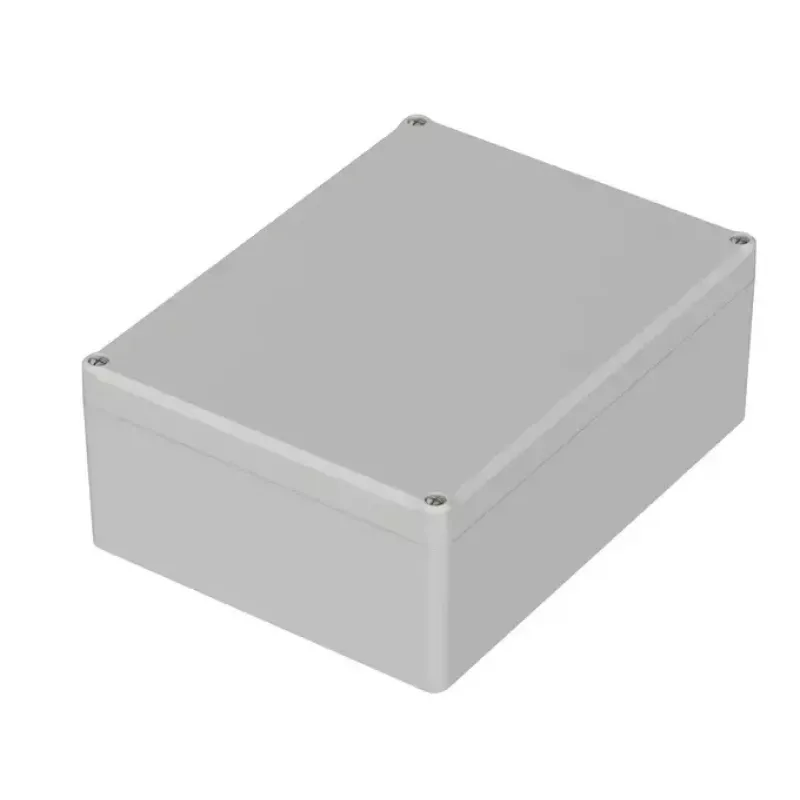

Bopla EM 223 carcasa universal 200 x 150 x 77 mm policarbonato gris claro RAL 7035 62223000

Protect sensitive electronics in demanding industrial environments with the Bopla EM 223 universal enclosure. Its robust polycarbonate body and IP65 sealing keep out dust and water, ensuring reliable operation even in harsh conditions.

Who is it for

Engineers, panel builders, and technicians who need a durable, corrosion-resistant housing for electrical and electronic components in industrial, automation, and outdoor applications.

Main features

• Polycarbonate construction: lightweight yet impact-resistant (IK07)
• Light grey RAL 7035 finish blends into standard control cabinets
• IP65 protection: dust-tight and protected against water jets
• Wide temperature range: -40 °C to +80 °C
• UV-resistant and halogen-free material
• Opaque lid with stainless steel screws for secure closure
• Polyurethane gasket ensures reliable sealing

Specifications

• External dimensions: 200 x 150 x 77 mm (L x W x H)
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Series: EM
• Flammability rating: UL 94 V-2

Tips

For outdoor installations, pair with cable glands rated for the same temperature range to maintain the enclosure's IP65 integrity.
