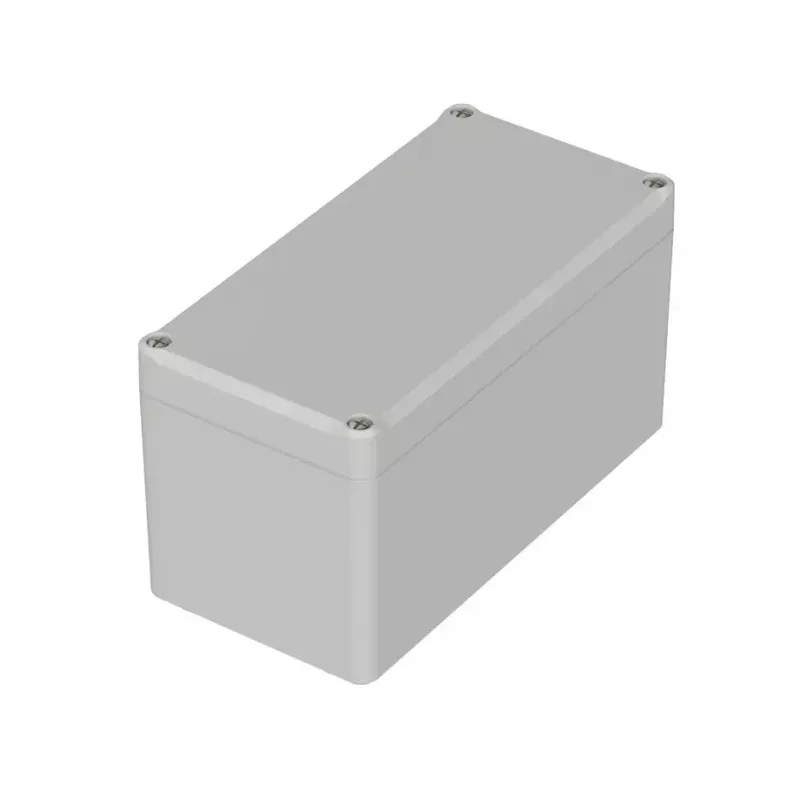

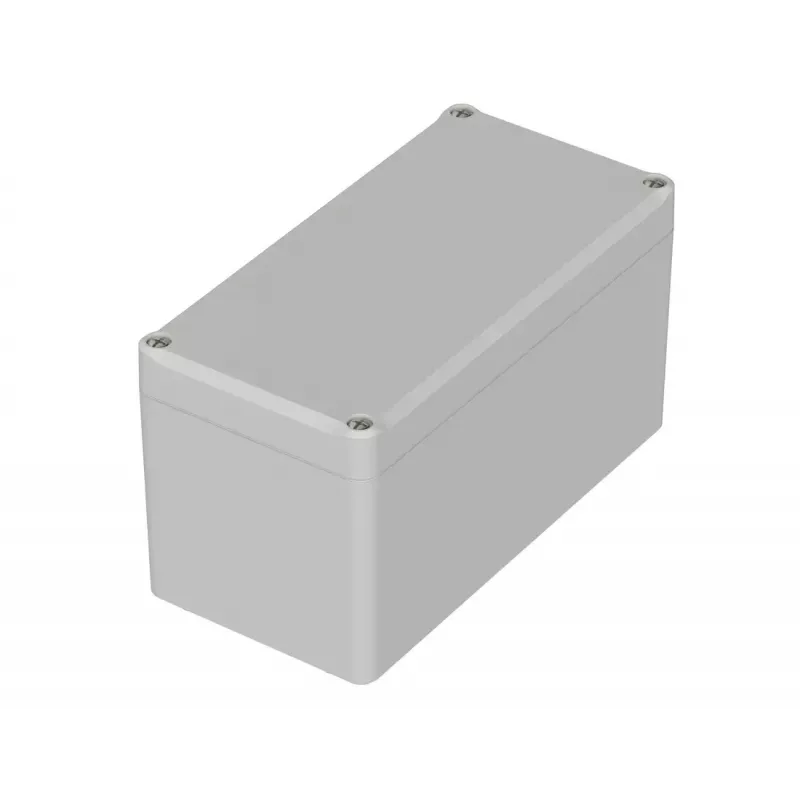

Bopla EM 231 carcasa universal, policarbonato, gris claro RAL 7035, 160 x 80 x 87 mm, IP65 62231000

The Bopla EM 231 stands out as a universal enclosure crafted from UV-stabilized polycarbonate, offering a light grey RAL 7035 finish that blends into industrial and outdoor settings. Its dimensions of 160 x 80 x 87 mm provide ample space for electronics, while the material delivers good chemical resistance against many acids, bases, and oils.

Highlights

• Robust polycarbonate body with UL 94 V-0 flammability rating for fire safety.
• Sealed to IP65, protecting against dust and water jets.
• Impact resistance rated IK07, suitable for demanding environments.
• Integrated mounting bosses for PCBs or mounting plates simplify installation.
• Stainless steel lid screws and PU gasket ensure a durable, secure closure.

In daily use

The EM 231 is designed for wall mounting, with pre-formed holes or brackets (mounting hardware not included). Its operating temperature range from -40 °C to +100 °C allows deployment in extreme conditions. The enclosure is RoHS compliant, aligning with modern environmental standards.

Full specifications

• Product Type: Universal Enclosure
• Material: Polycarbonate
• Colour: Light Grey (RAL 7035)
• External Dimensions (L x W x H): 160 x 80 x 87 mm
• Protection Class: IP65
• Impact Resistance: IK07
• Temperature Range: -40 °C to +100 °C
• Flammability Rating: UL 94 V-0
• Lid Fastening: Stainless Steel Screws
• Gasket Material: Polyurethane (PU)
• Mounting Type: Wall Mountable
• Internal Mounting: Integrated mounting bosses for PCBs/mounting plates
• UV Resistance: Good (UV stabilized material)
• Chemical Resistance: Good against many acids, bases, oils
• RoHS Compliant: Yes
• Series: EM Series
• Units per Package: 1

Final note

The Bopla EM 231 combines durability, safety, and ease of use, making it a reliable choice for protecting sensitive electronics in harsh conditions.
