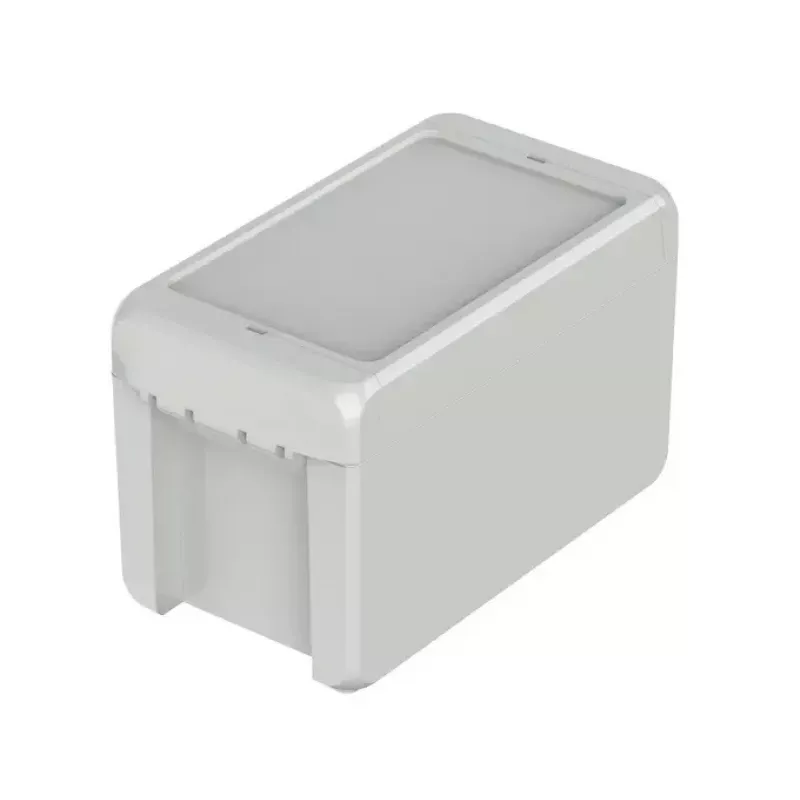

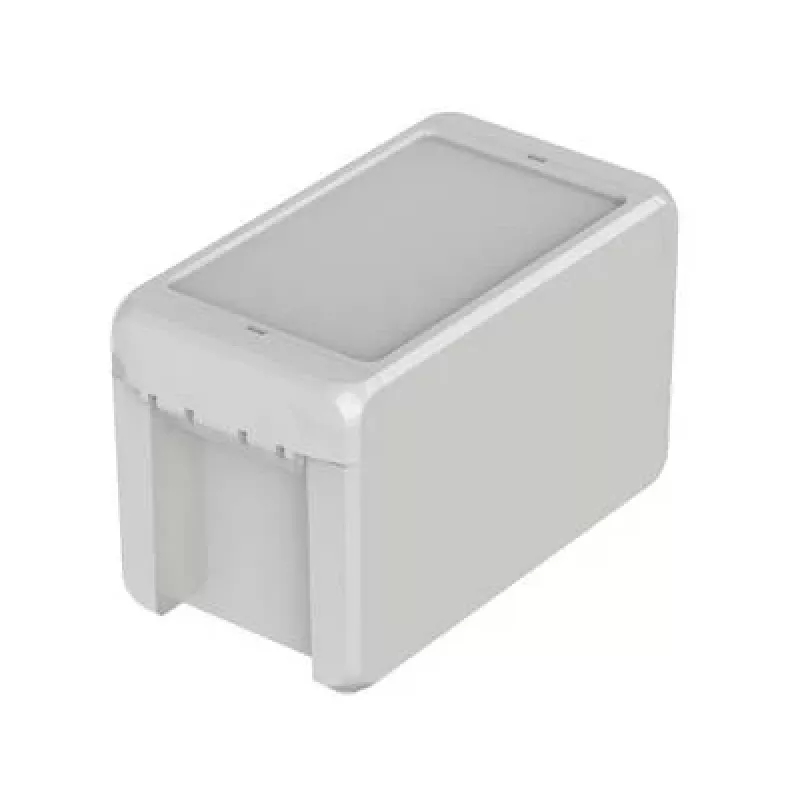

BOPLA EUROMAS II EM 235 Carcasa de pared, ABS, gris claro (RAL 7035), 151 x 80 x 90 mm, IP65, IK07 96033135

Protect sensitive electronics in harsh industrial environments with the BOPLA EUROMAS II EM 235 wall-mount enclosure. Its robust ABS construction and IP65 sealing keep dust and water out, while the light grey RAL 7035 finish blends seamlessly into control cabinets and machine installations.

Who is it for

Engineers and system integrators needing a reliable housing for PCBs, terminals, or small controllers in factories, outdoor installations, or washdown areas.

Main features

• High-impact ABS body with IK07 rating withstands mechanical stress.
• IP65 protection against dust and low-pressure water jets.
• Integrated mounting bosses for PCBs or mounting plates.
• Captive stainless steel lid screws for quick access.
• External wall mounting channels for easy installation.
• Polyurethane foam gasket ensures a tight seal.
• Operating temperature range from -40 °C to +80 °C.

Specifications

• Material: ABS (UL 94 HB flammability rating)
• Colour: Light grey (RAL 7035)
• External dimensions (W x H x D): 151 x 80 x 90 mm
• Series: EUROMAS II, model EM 235
• Lid fastening: 4x stainless steel captive screws
• Gasket: Polyurethane (PU) foam
• Mounting: External wall channels, internal bosses
• Chemical resistance: Good against oils, greases, alcohols, weak acids/alkalis
• UV resistance: Limited

Tips

For outdoor use, consider additional UV protection or painting to extend the enclosure's life. Ensure proper cable glands are used to maintain the IP65 rating.
