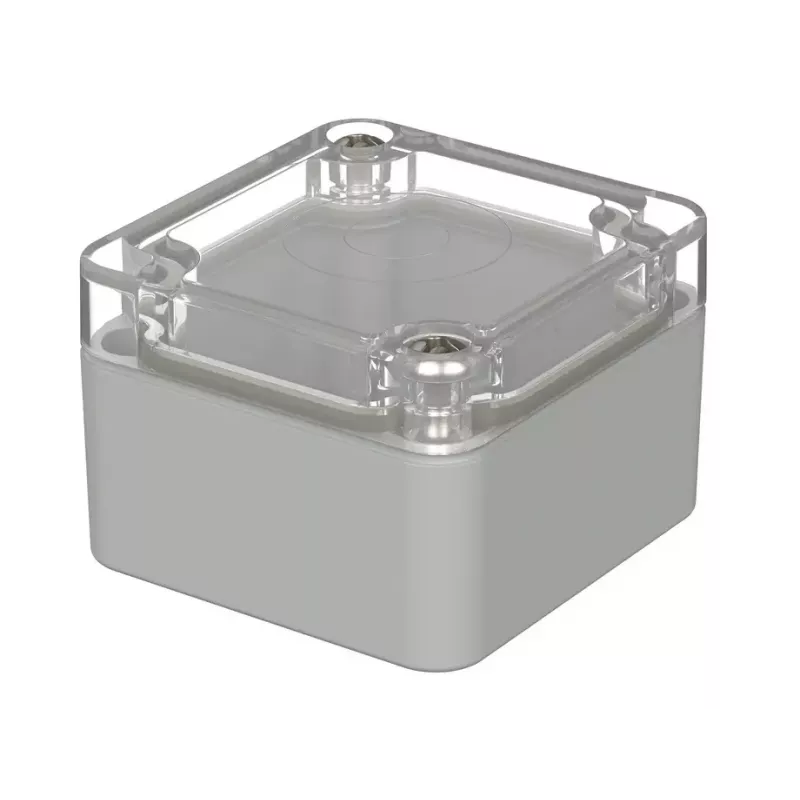

Bopla EUROMAS M 205 G carcasa universal, 52 x 50 x 35 mm, policarbonato, gris claro 02205400

Protect your electronics in demanding environments with the Bopla EUROMAS M 205 G universal enclosure. Ideal for control systems, sensor housings, and junction boxes in industrial automation, building technology, and outdoor installations.

Key specifications

• External dimensions: 52 mm length, 50 mm width, 35 mm height
• Material: Polycarbonate (PC), light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +100 °C
• Lid fastening: 4x stainless steel captive screws
• Gasket material: Polyurethane (PUR)
• Internal mounting bosses for PCBs or mounting plates
• Wall thickness: 2.5 mm
• UV resistant and halogen free

Why choose it

This enclosure combines a compact footprint with robust protection, making it suitable for both indoor and outdoor applications. The polycarbonate material offers high impact strength and resistance to UV radiation, ensuring long-term durability.

Ideal use cases

• Housing for sensors and transmitters
• Junction boxes in harsh environments
• Control units for machinery
• Outdoor electrical installations

Good to know

The EUROMAS M series is designed for versatile mounting options and easy assembly. The light grey color provides a neutral appearance suitable for various applications.
