Bopla EUROMAS T 215 carcasa universal 120 x 80 x 55 mm ABS gris claro IP65 03215000

IP65-rated protection in a compact 120 x 80 x 55 mm ABS enclosure, built for demanding industrial and outdoor applications.

Overview

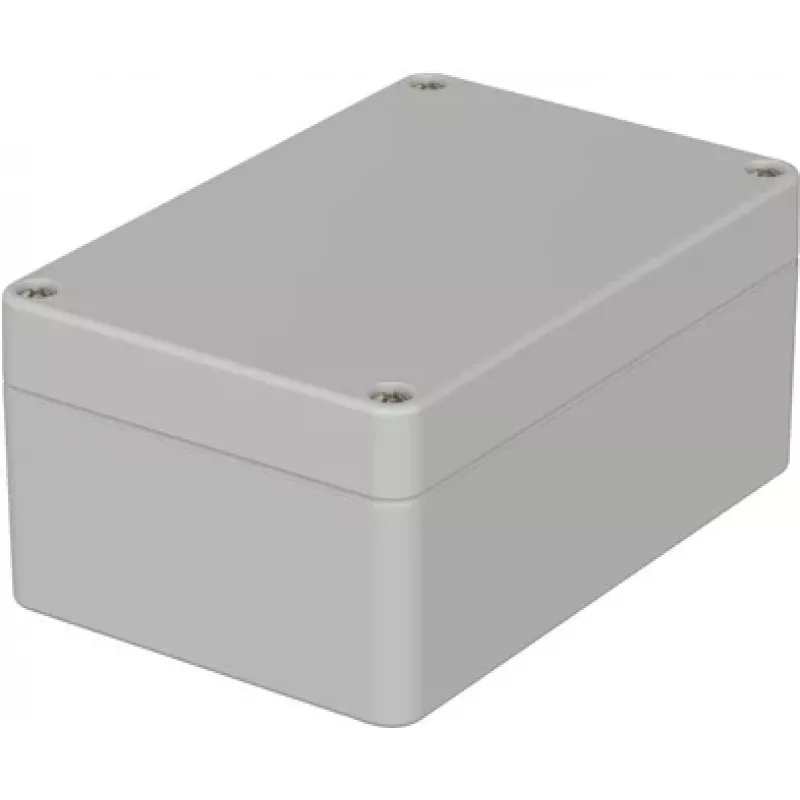

The Bopla EUROMAS T 215 is a universal enclosure made from light grey ABS (RAL 7035), offering a robust housing for electronics, controls, and connection systems. Its polyurethane foam gasket and stainless steel lid screws ensure a reliable seal against dust and water jets, meeting IP65 standards.

What stands out

• Light grey ABS body with UL 94 HB flammability rating and IK07 impact resistance
• Wall-mountable design with internal screw channels for secure installation
• Wide operating temperature range from -40 °C to +80 °C
• Good chemical resistance to oils, greases, alcohols, and weak acids/bases
• Halogen-free and RoHS compliant

Technical details

• External dimensions: 120 mm (L) x 80 mm (W) x 55 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Flammability rating: UL 94 HB
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Mounting: Wall mountable via screw channels
• Chemical resistance: Good against oils, greases, alcohols, weak acids/bases
• UV resistance: Limited
• RoHS compliance: Yes
• Halogen-free: Yes

Our verdict

A versatile and durable enclosure for industrial electronics, combining IP65 sealing with a robust ABS construction and easy wall mounting.
