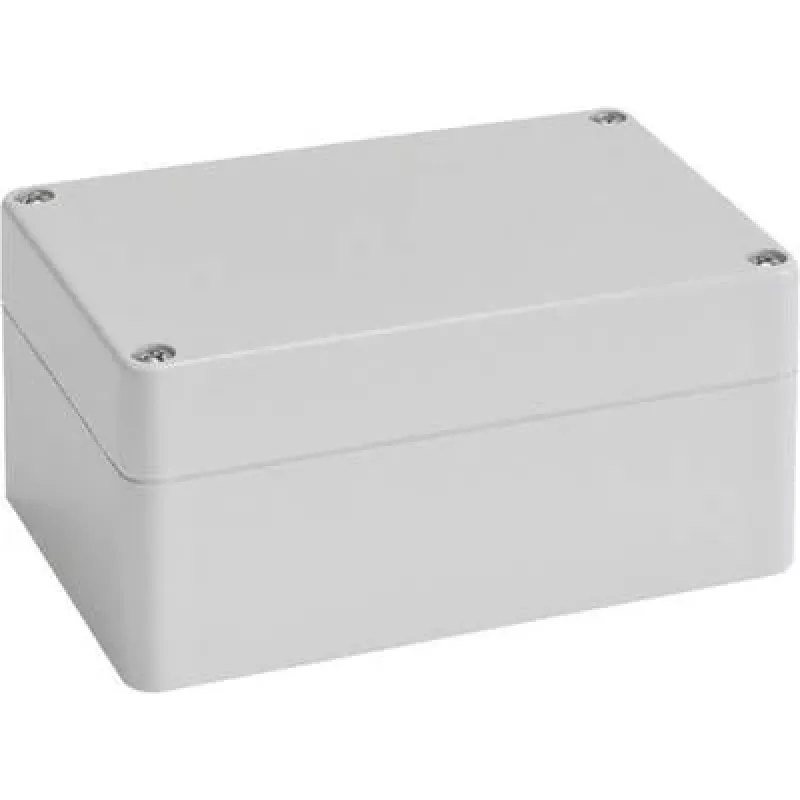

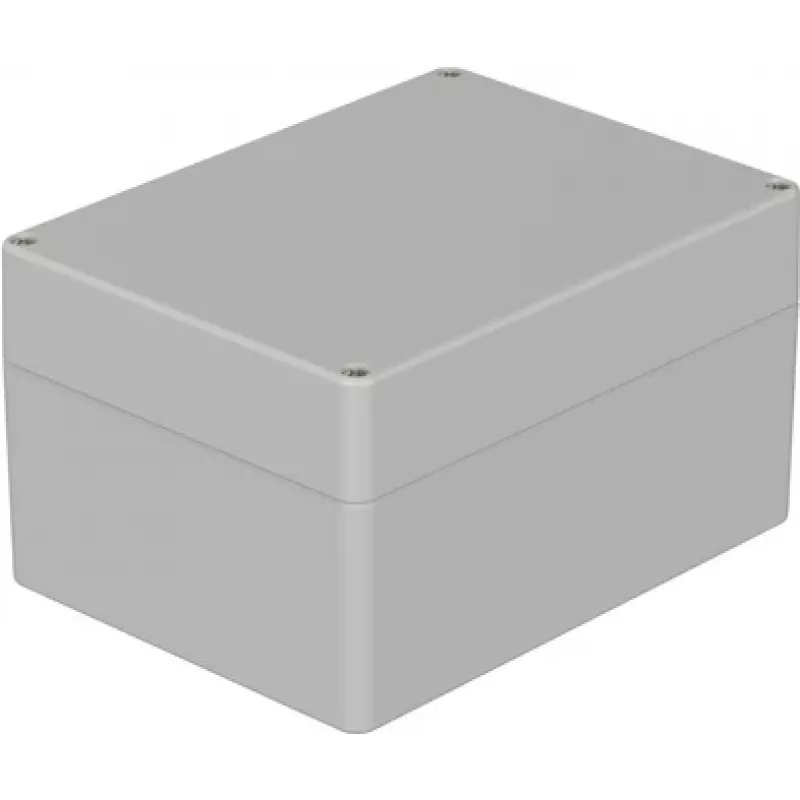

Bopla EUROMAS T 238 Carcasa universal 160 x 120 x 90 mm ABS gris claro 03238000

The Bopla EUROMAS T 238 enclosure stands out with its robust ABS construction and generous internal space, making it a solid choice for housing electronic components in demanding environments. Its light grey finish and IP65 protection ensure both a professional look and reliable performance.

Highlights

• Durable ABS housing in light grey (RAL 7035)
• External dimensions: 160 x 120 x 90 mm
• IP65 protection against dust and water jets
• Operating temperature range: -40 °C to +80 °C
• Four stainless steel lid screws for secure closure
• Polyurethane foam gasket for a tight seal
• Internal mounting bosses for PCBs or mounting plates
• Wall mounting possible

In daily use

This enclosure is well-suited for industrial electronics, control systems, and sensor housings. The ABS material offers good impact resistance and a clean surface, while the light grey color blends into most environments. The internal bosses simplify assembly, and the stainless steel screws ensure the lid stays firmly in place.

Full specifications

• Brand: Bopla
• Model: EUROMAS T 238
• MPN: 03238000
• EAN: 4016138732054
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey
• External Length: 160 mm
• External Width: 120 mm
• External Height: 90 mm
• Protection Class: IP65
• Operating Temperature Range: -40 °C to +80 °C
• Flammability Rating: UL 94 HB
• Lid Fastening: 4x Stainless Steel Screws (M4)
• Gasket Material: Polyurethane (PU) foam
• Impact Resistance: IK07
• Mounting Type: Internal mounting bosses for PCBs/mounting plates, Wall mounting possible
• Wall Thickness: Approx. 3 mm
• Series: EUROMAS T
• RoHS Compliant: Yes

Final note

The Bopla EUROMAS T 238 offers a reliable housing solution for electronics that require protection from dust and moisture, with ample space for custom mounting.
