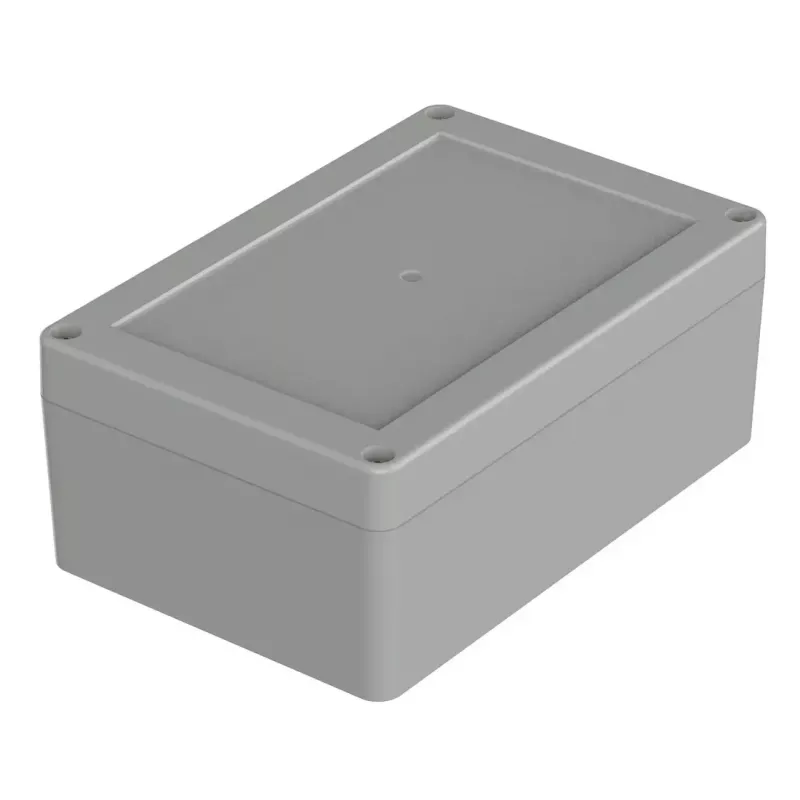

Bopla Euromas X Carcasa 150 x 100 x 60 mm, ABS, gris claro RAL 7035 07515106

For electronics developers and installers who need a robust housing for control units, sensors or interface modules, the Bopla Euromas X 151006 provides a clean, professional enclosure. The light grey ABS body measures 150 x 100 x 60 mm and is suited to wall mounting or machine integration in industrial and building automation environments.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 150 mm length, 100 mm width, 60 mm height
• Protection class: IP65
• Impact resistance: IK07
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Mounting features: Internal mounting bosses for PCBs/components
• Lid type: Screw-on, recessed

Why choose it

The Euromas X series combines a smooth, modern design with practical mounting options. The recessed lid and stainless steel screws give a secure, tamper-resistant closure, while the PUR gasket maintains the IP65 seal over time. Internal bosses allow direct PCB mounting without additional brackets.

Ideal use cases

• Industrial control boxes and sensor housings
• Building automation interfaces
• Outdoor electronic enclosures (with IP65 protection)
• Custom electronics projects requiring a professional finish

Good to know

The enclosure is supplied as a kit with base, lid, gasket and four lid screws. It is RoHS compliant and suitable for a wide operating temperature range.
