Bopla Euromas X Carcasa universal 150 x 100 x 75 mm ABS Gris claro RAL 7035 IP65 07515108

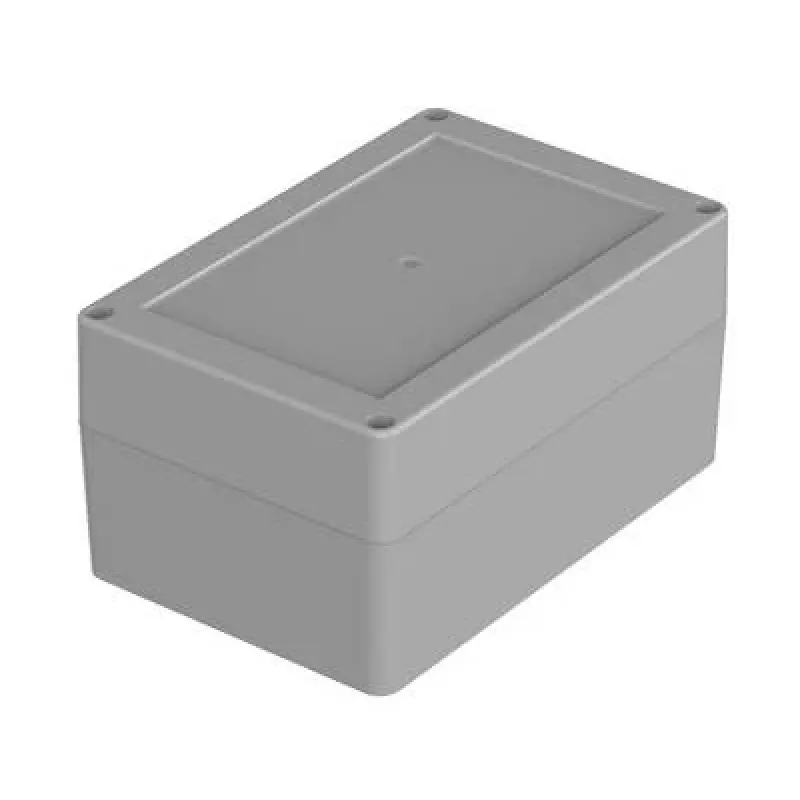

The Euromas X enclosure from Bopla offers a clean, functional housing for industrial electronics in a compact 150 x 100 x 75 mm format. Its light grey ABS body with a screw-on lid and integrated PU foam gasket keeps contents protected in demanding environments.

Highlights

• External dimensions: 150 mm length, 100 mm width, 75 mm height
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey RAL 7035
• IP65 protection with PU foam gasket and 4 stainless steel lid screws
• Operating temperature range: -40 to +80 °C
• Internal mounting bosses for PCBs or mounting plates

In daily use

This enclosure suits wall mounting or desktop placement in measurement, control, and automation applications. The screwed lid allows repeated access while the gasket maintains a reliable seal. Two parts – base and lid – simplify assembly and maintenance.

Full specifications

• Product Series: Euromas X
• Enclosure Type: Universal Enclosure
• Material: ABS
• Colour: Light Grey (RAL 7035)
• External Length: 150 mm
• External Width: 100 mm
• External Height: 75 mm
• Protection Class: IP65
• Lid Fastening: Screwed (4x stainless steel screws)
• Seal Material: PU foam gasket
• Operating Temperature Range: -40 to +80 °C
• Flammability Rating: UL 94 HB
• Number of Parts: 2 (Base, Lid)
• Internal Mounting: Mounting bosses for PCBs/mounting plates
• Application: Industrial electronics, measurement and control technology, automation
• Mounting Options: Wall mounting, desktop use

Final note

A practical choice for housing electronics where a balance of size, protection, and easy access is required.
