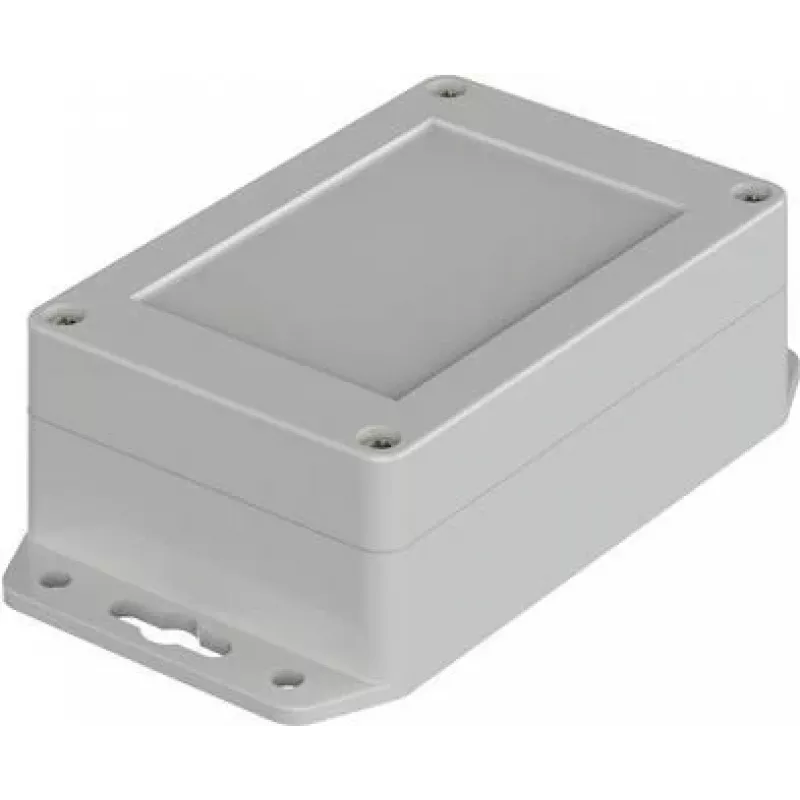

Bopla Euromas X/XT 110704 WL 7035 Carcasa electrónica 105 x 70 x 40 mm ABS gris claro RAL 7035 IP65 07811074

With an IP65 ingress protection rating, the Bopla Euromas X/XT 110704 WL 7035 electronics enclosure keeps sensitive components safe from dust and water jets. This light grey (RAL 7035) ABS housing measures 105 x 70 x 40 mm and is built for general-purpose electronic applications.

Overview

The Euromas X/XT series offers a robust yet lightweight solution for housing PCBs, sensors, and control systems. The enclosure is made from ABS (Acrylonitrile Butadiene Styrene), providing good impact resistance (IK07) and a wide operating temperature range of -40 to +80 °C. The lid is secured with stainless steel screws and includes a PU foam gasket to maintain the seal. This WL variant does not include mounting flanges, allowing for flexible installation options.

What stands out

• IP65 protection against dust and water jets
• Durable ABS construction with UL 94 HB flammability rating
• Wide temperature range from -40 to +80 °C
• Stainless steel lid screws and PU foam gasket for reliable sealing
• Light grey RAL 7035 colour suitable for many environments

Technical details

• External dimensions: 105 mm (L) x 70 mm (W) x 40 mm (H)
• Material: ABS
• Colour: Light grey (RAL 7035)
• IP rating: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Operating temperature: -40 to +80 °C
• Lid fastening: Stainless steel screws
• Gasket material: PU foam
• Mounting flanges: No (WL variant)

Our verdict

A dependable enclosure for electronics that need protection from harsh conditions, with a proven sealing system and solid ABS build.
