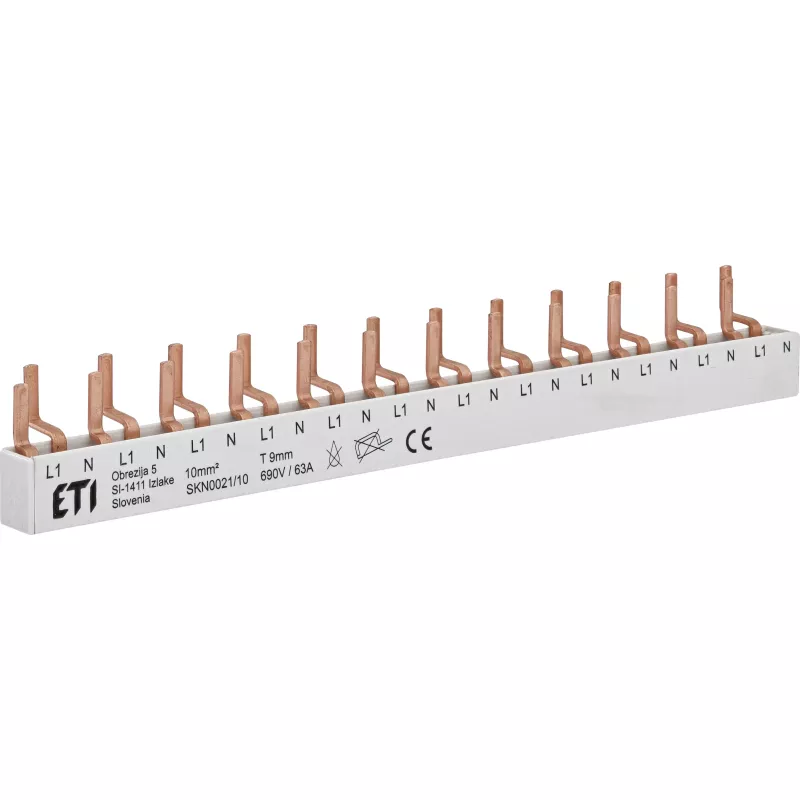

ETI 002921150 Barra colectora de pines aislada SKN0021/10 para ETIMAT 1N, KZS 1M, 1 polo, 10 módulos, 63 A

Electricians and panel builders use the ETI 002921150 insulated pin busbar to distribute power across up to ten modular devices on a DIN rail. It connects ETIMAT 1N miniature circuit breakers, KZS 1M residual current circuit breakers, and other pin-terminal devices in consumer units and distribution boards.

Key specifications

• Product type: Pin busbar
• Number of poles: 1
• Number of modules: 10
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Conductor cross-section: 10 mm²
• Pitch: 18 mm
• Terminal type: Pin type
• Insulation: Fully insulated
• Conductor material: Copper
• Insulation material: Self-extinguishing plastic
• Colour: Grey
• Operating temperature: -25°C to +50°C
• Compatible products: ETIMAT 1N, KZS 1M

Why choose it

The busbar simplifies wiring by replacing multiple individual jumpers with a single insulated bar. Its pin terminals plug directly into compatible devices, reducing installation time and the risk of wiring errors. The self-extinguishing insulation adds safety in distribution boards.

Ideal use cases

• Power distribution in residential and commercial consumer units
• Connecting multiple MCBs or RCCBs on a DIN rail
• Retrofit or new installations requiring a 1-pole busbar for 10 modules

Good to know

The busbar is designed for pin-type modular devices with 18 mm pitch. It is fully insulated for touch protection. Always verify compatibility with your specific devices before installation.
