Bopla Euromas X, XT 151005 WL 7035 Carcasa electrónica 150 x 100 x 45 mm ABS Gris claro RAL 7035 IP65 07815105

IP65-rated protection in a compact 150 x 100 x 45 mm ABS enclosure with a recessed lid for membrane keypads or labels.

Overview

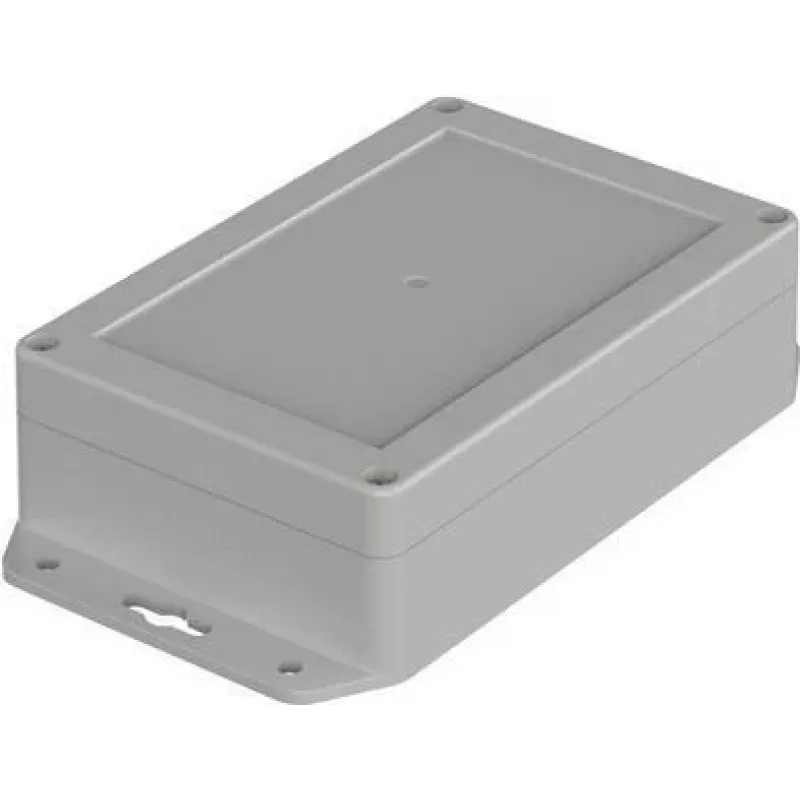

The Bopla Euromas X, XT 151005 WL 7035 is a light grey (RAL 7035) electronics enclosure made from flame-retardant ABS (UL 94 V-0). Its external dimensions are 150 mm length, 100 mm width, and 45 mm height. The enclosure is sealed with a polyurethane gasket and secured with four stainless steel screws, achieving IP65 protection against dust and water jets. It operates in temperatures from -40 °C to +80 °C and withstands impacts up to IK07.

What stands out

• Recessed lid accepts membrane keypads or labels for a flush finish.
• Integrated mounting bosses simplify PCB or mounting plate installation.
• Flame-retardant ABS meets UL 94 V-0 for enhanced safety.
• Stainless steel screws resist corrosion in industrial environments.

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey, RAL 7035
• External dimensions: 150 x 100 x 45 mm
• Protection class: IP65
• Gasket material: Polyurethane (PUR)
• Flammability rating: UL 94 V-0
• Temperature range: -40 °C to +80 °C
• Impact resistance: IK07
• Number of screws: 4

Our verdict

A rugged, versatile enclosure for industrial electronics, control systems, and measurement technology where protection and easy customization matter.
