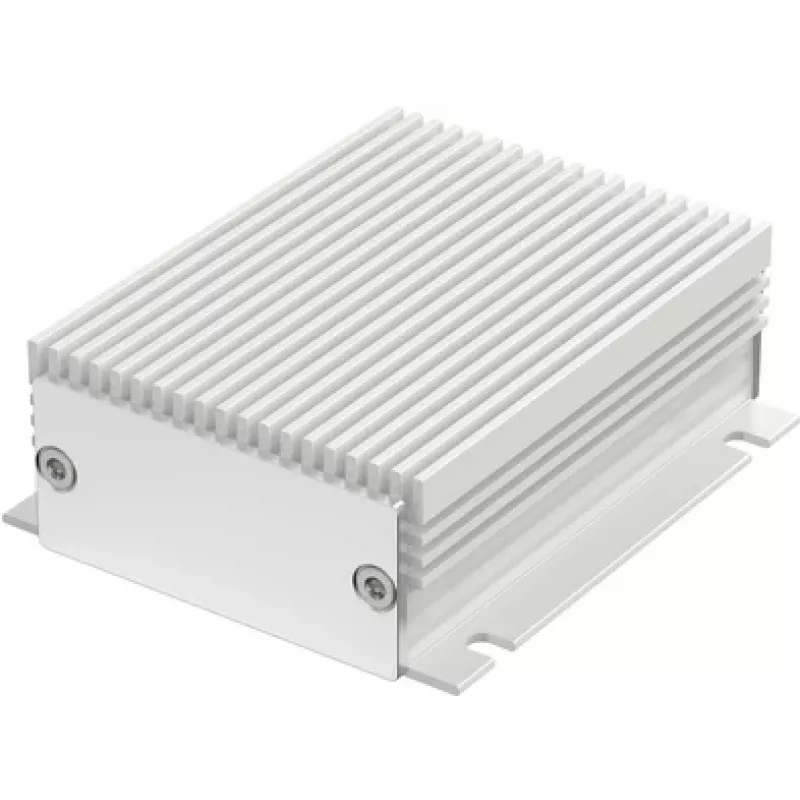

Bopla FILOTEC F 524-80 KWL carcasa de perfil de aluminio, 55,3 x 24,4 x 80 mm, anodizado 97453080.H

Electronic components and PCBs need a robust, precisely dimensioned housing that protects them while allowing efficient assembly. The Bopla FILOTEC F 524-80 KWL profile enclosure provides a solid aluminum body with integrated PCB guide grooves, making it ideal for control units and electronic modules.

Who is it for

Engineers and manufacturers developing electronic devices, control systems, or custom PCB assemblies who require a durable, extruded aluminum enclosure with reliable mounting options.

Main features

• Extruded aluminum profile with anodized finish for corrosion resistance and a professional appearance
• Integrated PCB guide grooves for secure board positioning and easy assembly
• Surface mount via screw channels for stable installation
• External dimensions: 55.3 mm width, 24.4 mm height, 80 mm length
• Silver natural anodized color

Specifications

• Enclosure Type: Profile Enclosure
• Material: Aluminum
• Material Finish: Anodized
• Series: FILOTEC
• Model Identifier: F 524-80 KWL
• External Length: 80 mm
• External Width: 55.3 mm
• External Height: 24.4 mm
• Color: Silver (Natural Anodized Aluminum)
• Construction: Extruded Profile
• Internal Features: Integrated PCB guide grooves
• Mounting Type: Surface Mount (via screw channels)
• Application: Electronic components, PCBs, control units
• Number of Units: 1

Tips

Verify the internal dimensions against your PCB size before ordering. The anodized surface provides insulation and can be machined for custom cutouts if needed.
