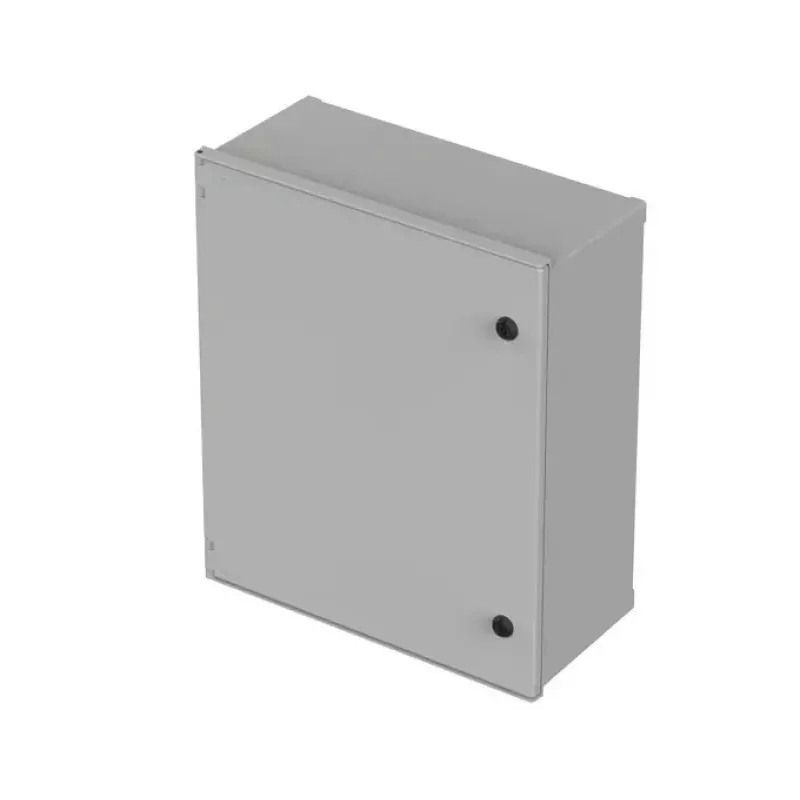

Bopla PS 652 Carcasa de pared 600 x 500 x 230 mm gris claro (RAL 7035) 42165200

IP66-rated wall-mounted enclosure made of polystyrene, sized 600 x 500 x 230 mm in light grey (RAL 7035).

Overview

The Bopla PS 652 is a robust wall-mounted enclosure designed for industrial automation, electrical distribution, and control systems. Its IP66 protection class ensures dust-tightness and resistance to powerful water jets, while the IK07 impact rating provides protection against 2 joules of mechanical impact. The enclosure is made of halogen-free, UV-resistant polystyrene, making it suitable for demanding environments.

What stands out

• IP66 dust-tight and water-jet resistant
• IK07 impact resistance (2 joules)
• Halogen-free and UV-resistant polystyrene
• External wall mounting brackets for easy installation
• Integrated mounting bosses for mounting plates or DIN rails

Technical details

• Material: Polystyrene (PS)
• Colour: Light Grey (RAL 7035)
• External dimensions (H x W x D): 600 x 500 x 230 mm
• Lid fastening: Screw-on lid, opaque PS
• Gasket material: Polyurethane (PUR)
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +70°C
• Certifications: CE, RoHS Compliant

Our verdict

A reliable enclosure for industrial applications requiring protection against dust, water, and impact, with flexible internal mounting options.
