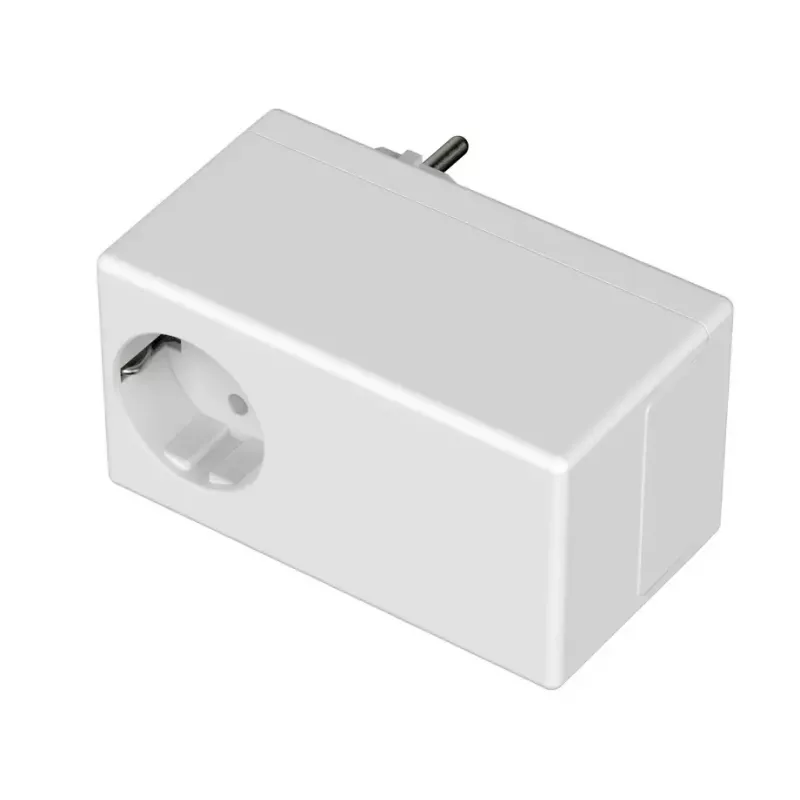

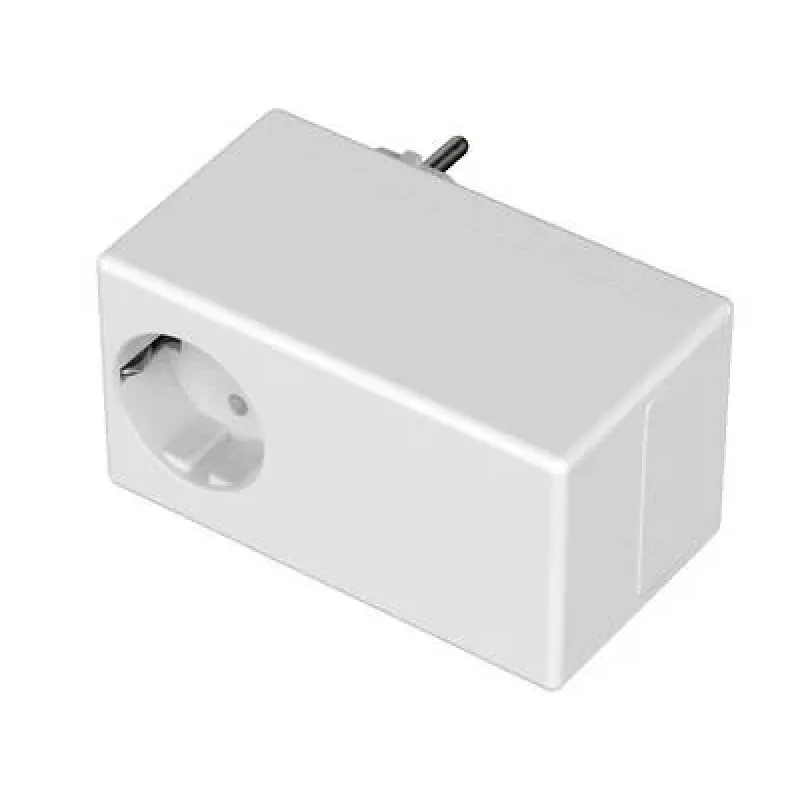

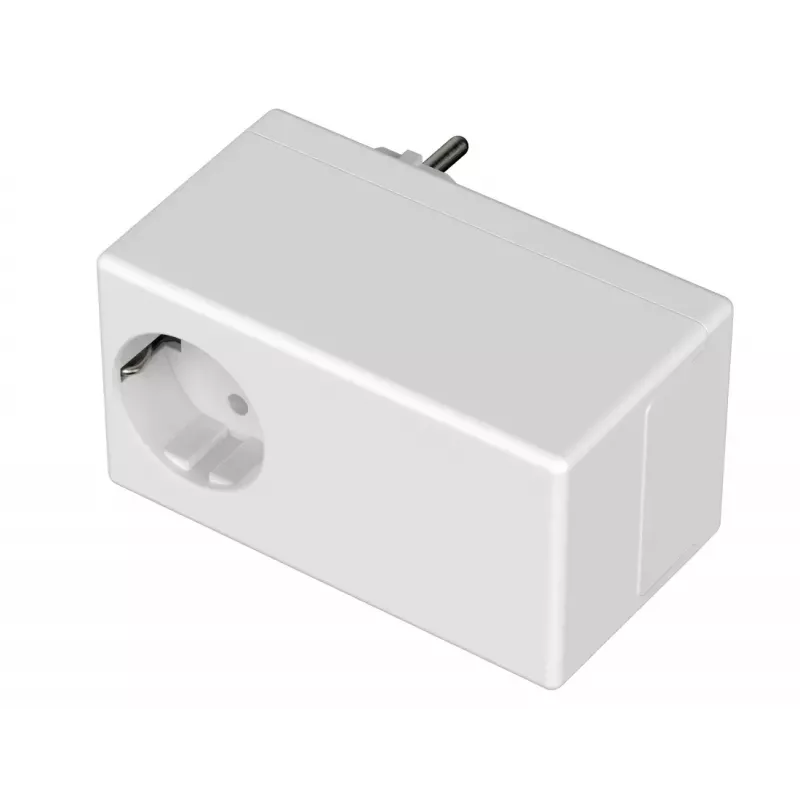

Bopla SE 435 DE - 9016 Carcasa de conector 120 x 65 x 66 mm Policarbonato Blanco tráfico (RAL 9016) 43435509

Electronic components need protection from dust, moisture, and mechanical impact. The Bopla SE 435 DE plug housing provides a robust enclosure for your electronics, with external dimensions of 120 x 65 x 66 mm and a traffic white (RAL 9016) polycarbonate body.

Who is it for

This housing is suitable for engineers, technicians, and hobbyists who need to mount electronic circuits or connectors in industrial or outdoor environments. It is ideal for applications requiring a compact, durable enclosure with a clean white finish.

Main features

• Polycarbonate (PC) material for high impact resistance and durability
• Traffic white (RAL 9016) colour for a professional appearance
• External dimensions: 120 mm length, 65 mm width, 66 mm height
• IP65 protection class against dust and water jets
• IK07 impact resistance rating
• UL 94 V-2 flammability rating
• Operating temperature range: -40 to +80 °C
• Screw-on lid fastening for secure closure
• Polyurethane (PUR) gasket for reliable sealing
• Wall mounting and desktop use options

Tips

When selecting a housing, ensure that the internal dimensions accommodate your PCB and components. The IP65 rating makes this enclosure suitable for outdoor use, but avoid prolonged submersion. For best sealing, tighten the lid screws evenly.
