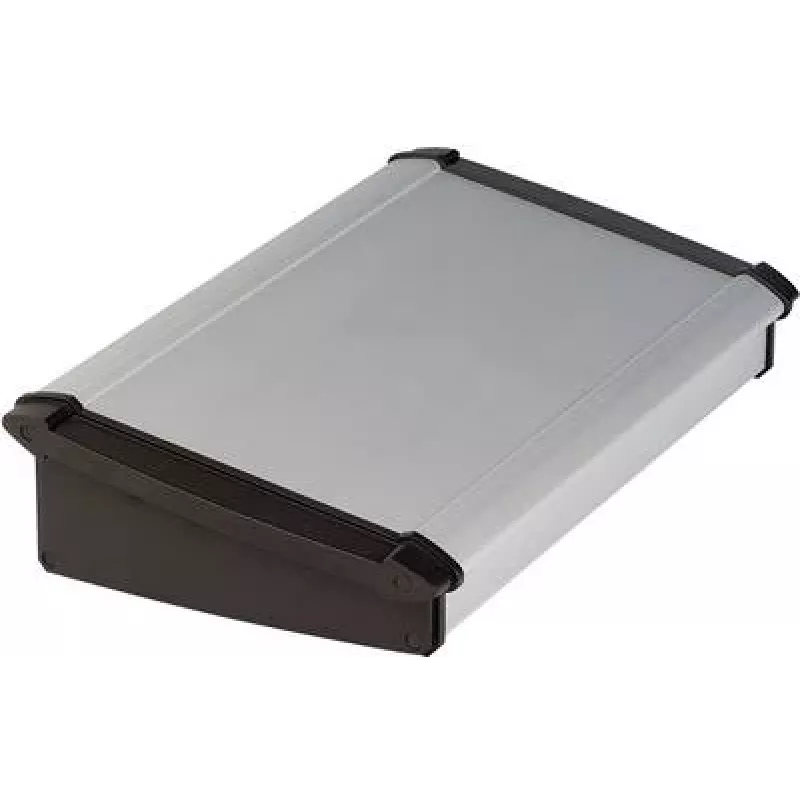

Bopla TOPLINE ATPH 1850-150 Caja de sobremesa de aluminio, 150 x 181 x 53 mm, gris grafito RAL 7024 92850150.MT 2

The TOPLINE ATPH 1850-150 stands out with its sloping front panel, offering an ergonomic viewing angle for control units and measurement devices. Its aluminium construction provides robust protection while remaining lightweight for desktop use.

Highlights

• Sloping front panel for improved readability and operation
• Aluminium housing (AlMgSi 0.5) with powder-coated graphite grey finish
• Two-part design with screw-on lid for easy access
• Internal screw channels for mounting plates and PCBs
• Rubber feet included for stable placement

In daily use

This enclosure suits desktop electronics that require a professional appearance and reliable housing. The screw-on lid allows straightforward assembly and maintenance, while the sloping front enhances user interaction. The graphite grey powder coating provides a durable, scratch-resistant surface.

Full specifications

• External dimensions: 150 mm depth x 181 mm width x 53 mm height
• Material: Aluminium (AlMgSi 0.5)
• Colour: Graphite grey, RAL 7024
• Surface treatment: Powder-coated
• Lid fastening: Screw-on
• Number of enclosure parts: 2 (top and bottom shell)
• Front panel design: Sloping
• Internal mounting options: Screw channels for mounting plates/PCBs
• Included components: Top shell, bottom shell, fastening screws, rubber feet
• Operating temperature range: -40 to +80 °C

Final note

A versatile aluminium enclosure for professional desktop electronics, combining ergonomic design with durable construction.
