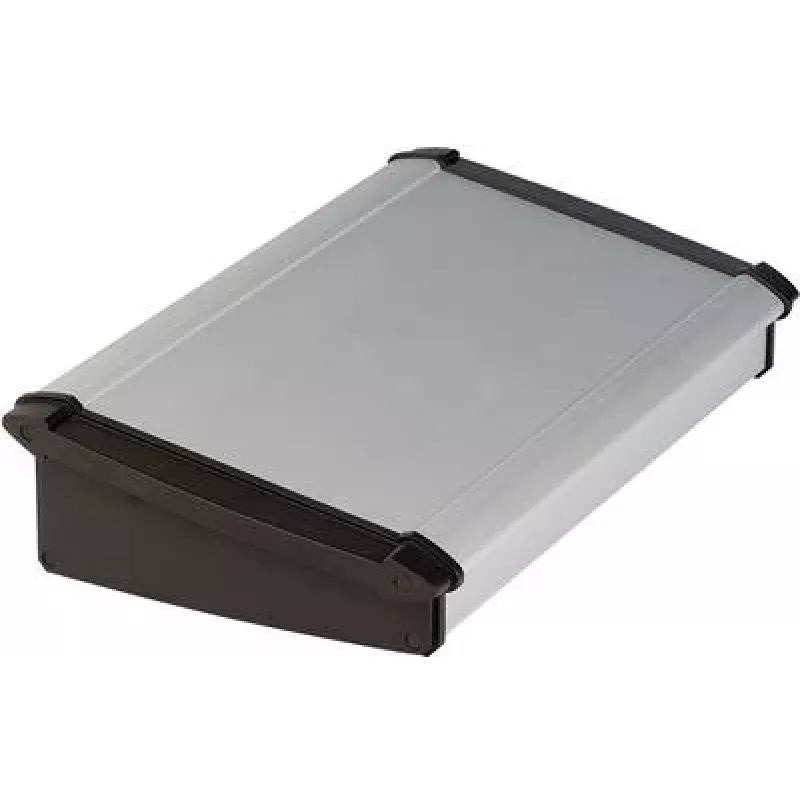

Bopla TOPLINE ATPH 1865-150 Carcasa de consola, Aluminio, Grafito (RAL 7024), 150 x 181 x 68 mm 92865150.MT6

Electronics projects need a housing that protects components while offering a professional look. The Bopla TOPLINE ATPH 1865-150 console enclosure provides a robust aluminium body with a sloping front panel, ideal for desktop control units, measurement devices, or interface modules.

Who is it for

Engineers, technicians, and hobbyists who require a durable, aesthetically pleasing enclosure for custom electronics. Its desktop orientation suits applications where the user interacts with controls or displays.

Main features

• Aluminium construction with powder-coated graphite grey (RAL 7024) finish
• Sloping front panel for ergonomic viewing and operation
• External dimensions: 150 mm depth, 181 mm width, 68 mm height
• Two-part design: base and lid, with assembly screws included
• Operating temperature range: -40 to +80 °C

Specifications

• Material: Aluminium
• Colour: Graphite Grey (RAL 7024)
• External dimensions (D x W x H): 150 x 181 x 68 mm
• Enclosure design: Sloping front panel
• Surface finish: Powder-coated
• Number of parts: 2 (base and lid)
• Operating temperature: -40 to +80 °C
• Mounting type: Desktop

Tips

When installing components, ensure adequate clearance for connectors on the rear and sides. The aluminium body can be drilled or machined for custom cutouts if needed.
