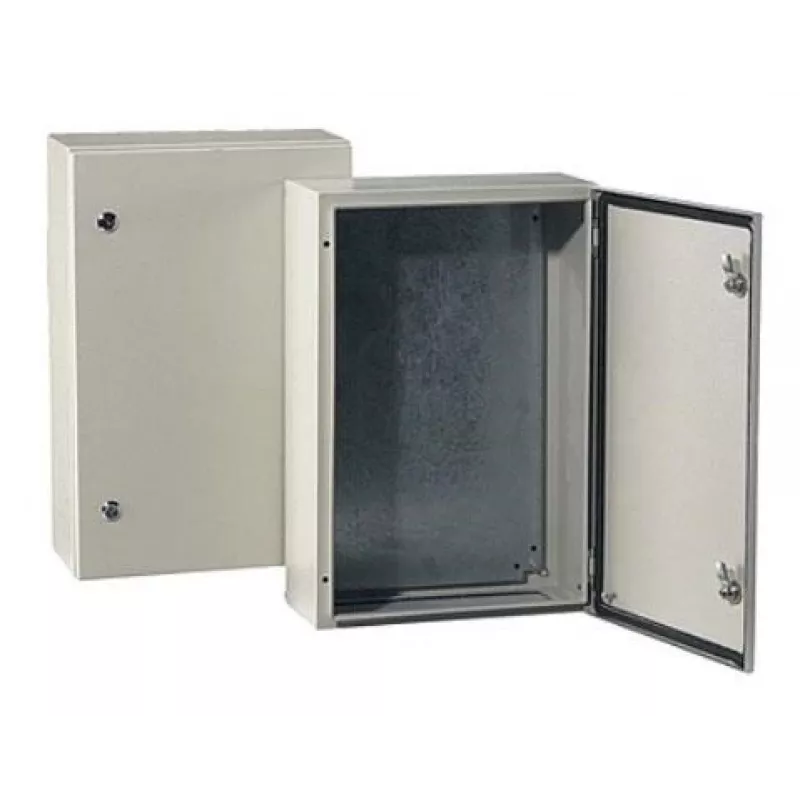

BRD MET ST8 1430 1400x800x300mm IP66 carcasa de pared gris

The BRD MET ST8 1430 is a robust wall-mounted enclosure designed for demanding industrial environments. Manufactured from high-quality mild steel with a powder-coated textured finish in RAL 7035 grey, this enclosure offers exceptional protection against dust and water ingress with an IP66 rating. It complies with NEMA 4, 12, and 13 standards, making it suitable for indoor and outdoor applications.

Advantages

This enclosure provides reliable protection for electrical and electronic equipment. Its sturdy construction and high ingress protection ensure long-lasting performance in harsh conditions. The included galvanized steel mounting plate and bottom gland plate simplify installation and cable management.

Suitable for

• Industrial control systems
• Electrical distribution
• Telecommunications equipment
• Outdoor installations requiring weatherproof protection

Key specifications

• External dimensions: 1400 x 800 x 300 mm (Height x Width x Depth)
• Material: Mild steel, body thickness 1.2 mm, door thickness 1.5 mm
• IP rating: IP66
• NEMA rating: 4, 12, 13
• Colour: RAL 7035 grey
• Door: Single door with 130° opening angle, double-bit 3 mm lock
• Includes: Galvanized steel mounting plate, bottom gland plate, earthing studs
• Standards: IEC 62208, EN 60529, UL 508A, cUL

Recommendations

For optimal performance, ensure proper earthing and use appropriate cable glands for the bottom gland plate. This enclosure is ideal for housing sensitive equipment in dusty or wet environments.
