Brumberg 17662000 driver LED de corriente constante 7,2W 350mA 230V negro

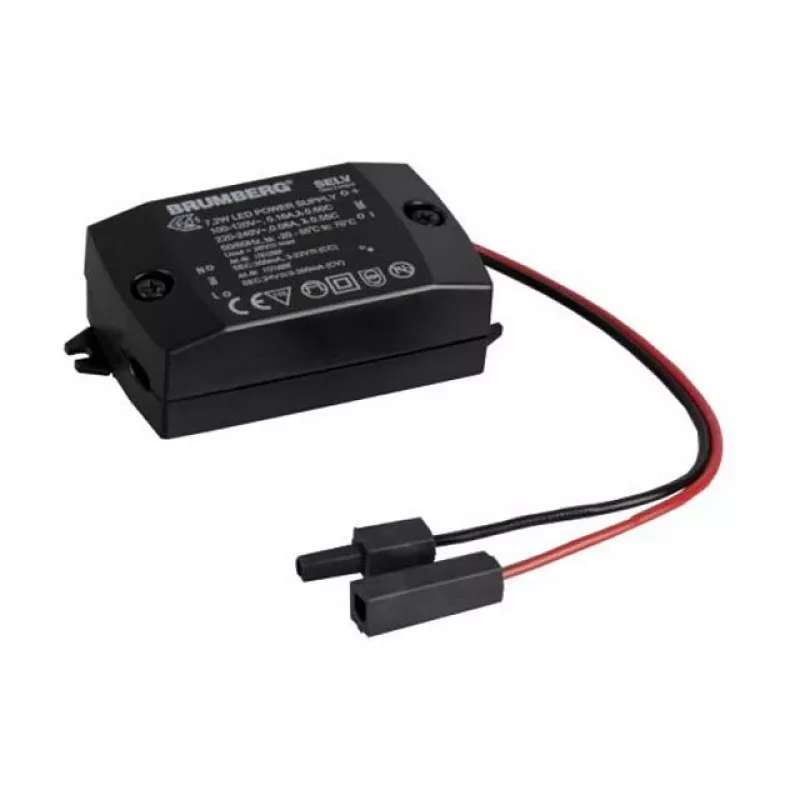

The Brumberg 17662000 is a high-quality LED constant current driver designed for reliable and efficient operation of LED lighting systems. With an output of 7.2W and 350mA, it is ideal for powering LED modules and downlights. The driver features a compact rectangular housing in black, making it suitable for discreet installation in various indoor applications.

Advantages

This driver offers overload, short circuit, and thermal protection, ensuring long-lasting performance and safety. Its push-in terminals allow for quick and tool-free wiring, saving installation time. The driver is dimmable? No, it is non-dimmable, providing stable output for constant current LED loads.

Suitable for

• Indoor LED lighting installations
• LED modules requiring 350mA constant current
• Recessed and surface-mounted luminaires

Key specifications

• Product Type: LED Constant Current Driver
• Output Current: 350 mA
• Output Power: 7.2 W
• Input Voltage: 220-240 V AC
• Output Voltage Range: 2-20 V DC
• Dimmability: No
• Protection Class: II
• IP Rating: IP20
• Housing Color: Black
• Housing Material: Plastic
• Input Frequency: 50/60 Hz
• Ambient Temperature (Ta): Max. 45°C
• Case Temperature (Tc): Max. 75°C
• Protection Features: Overload, Short Circuit, Thermal Protection
• Connection Type (Input): Push-in terminals
• Connection Type (Output): Push-in terminals

Recommendations

For optimal performance, ensure the driver is installed in a well-ventilated area and not subjected to excessive ambient temperatures. Always match the driver's output current to the LED load requirements.
